Antennas

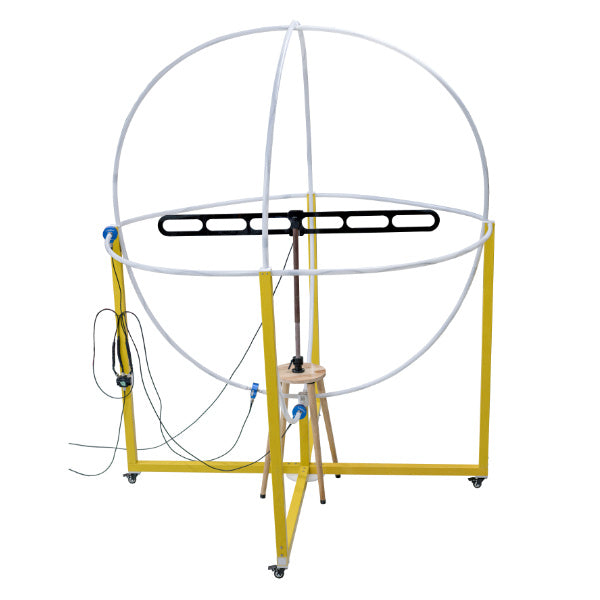

The TBLLA-2M is a large loop antenna (LLA) with three orthogonal loops, as required by CISPR 16 -1-4 and CISPR 15 / EN 55015. The LLA is used to measure...

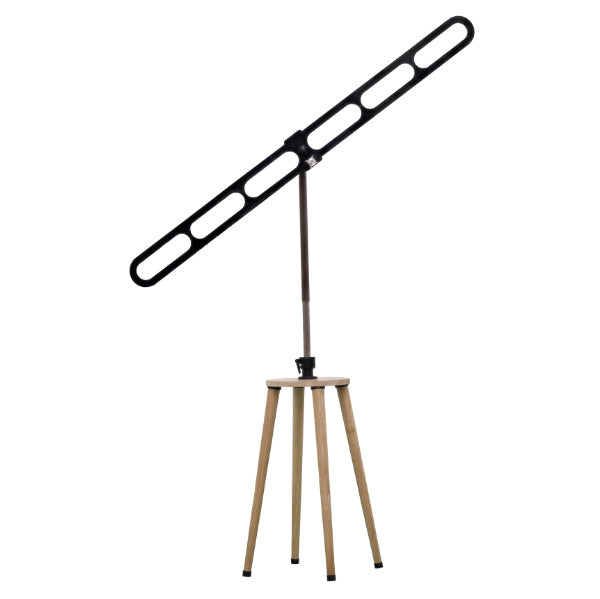

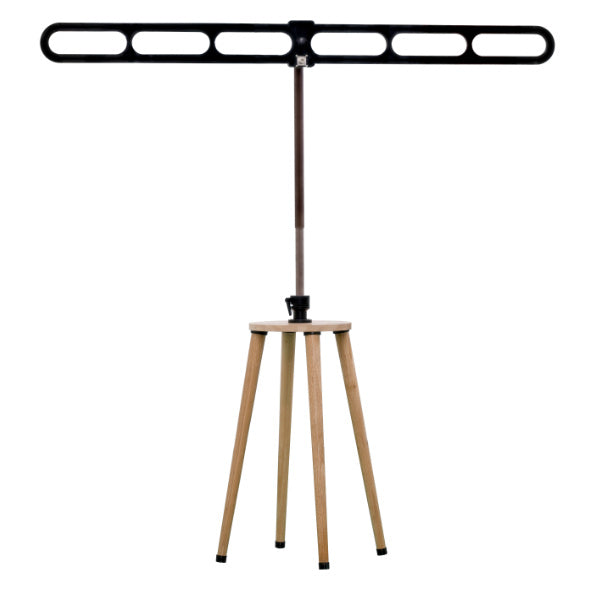

The TBLLA-CDP is a calibration dipole for the TBLLA-2M large loop antenna.

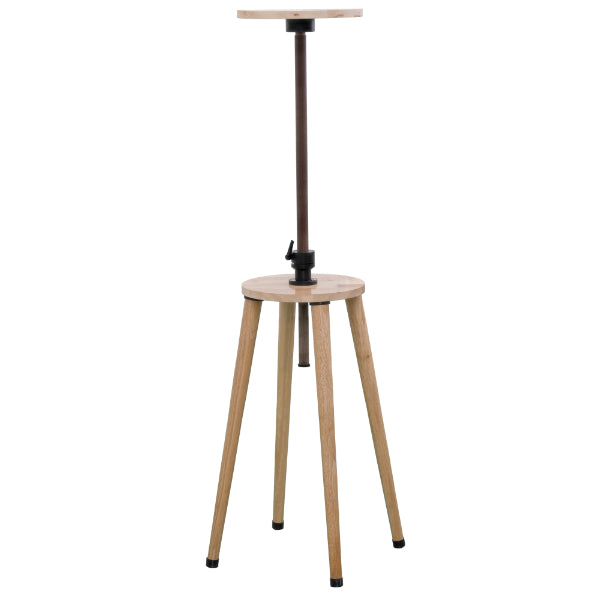

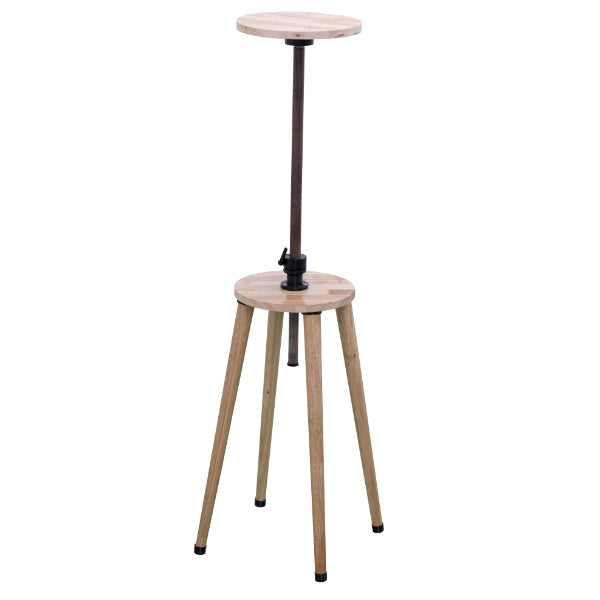

The TBLLA-CDP-SS-B is the support structure for the EUT and the calibration dipole for the TBLLA-2M large loop antenna.

The TBLNA-9K30 is a pre-amplifier for the TBMA6-P, expanding the dynamic range of the passive loop antenna.The pre-amplifier is designed for the TBMA6-P, but it can be used together with...

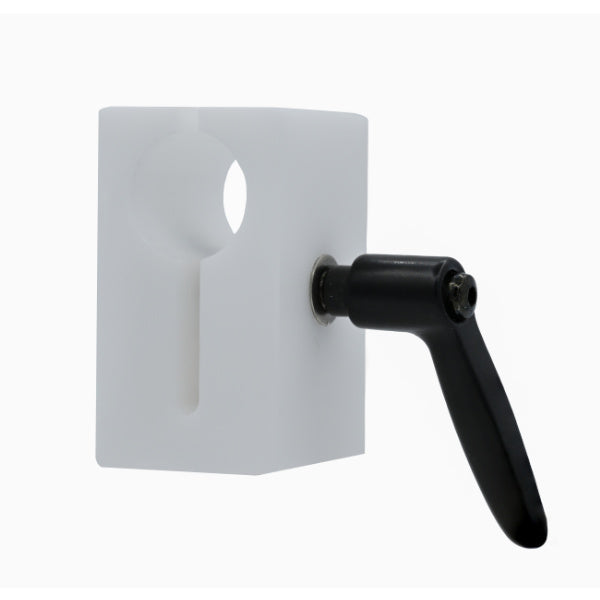

POM adapter with standard 1/4” thread DOCUMENTATION Antenna tripods and mounting adapters manual

The TBMA11 is an affordable logarithmic-periodic measurement antenna for radiated emission measurements. The TBMA11 is characterized from 130 MHz to 6000 MHz and has VSWR and antenna factor values typical...

The TBMA12 is an affordable hybrid measurement antenna for radiated emission measurements. The antenna is a combination of a biconical antenna with a logarithmic periodic antenna, covering the frequency range...

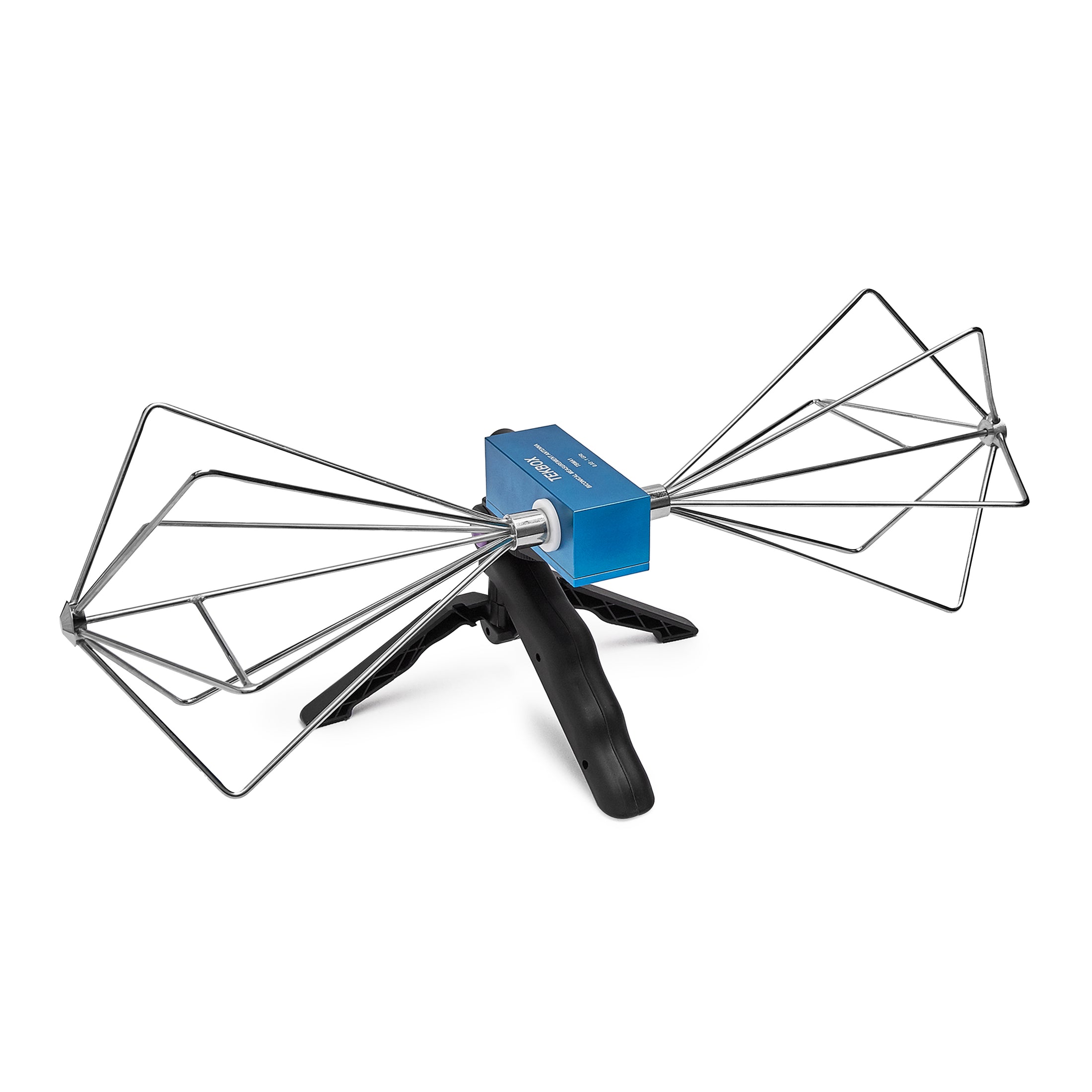

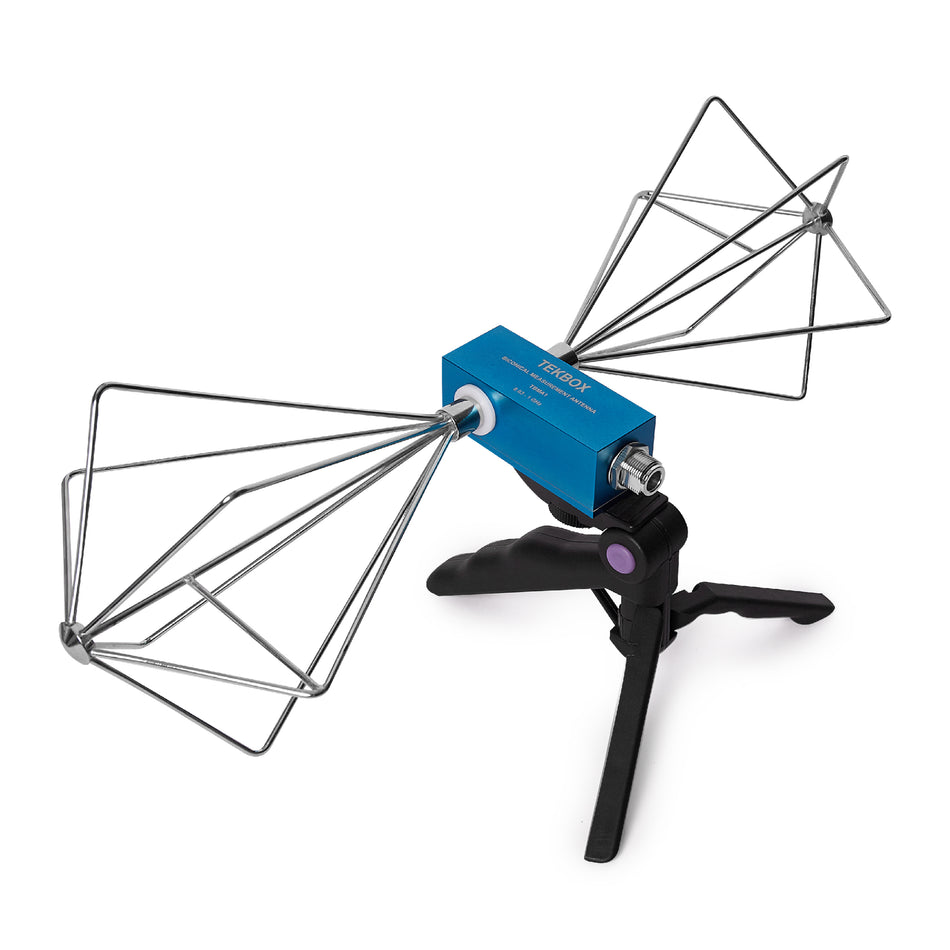

The TBMA1B is a small, lightweight, wideband biconical measurement antenna. With its moderate price, it is targeting radiated noise EMC pre-compliance testing and generating defined field strengths. It is characterized...

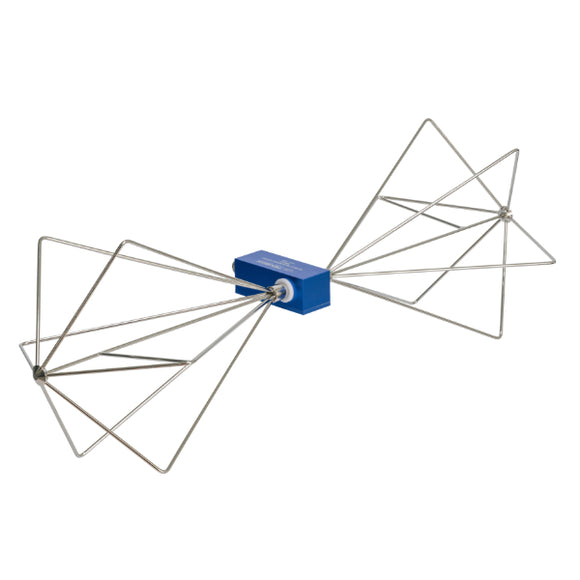

The TBMA1C is a small, lightweight, wideband biconical measurement antenna. With its moderate price, it is targeting radiated emission EMC pre-compliance testing and generating defined field strengths. It is characterized...

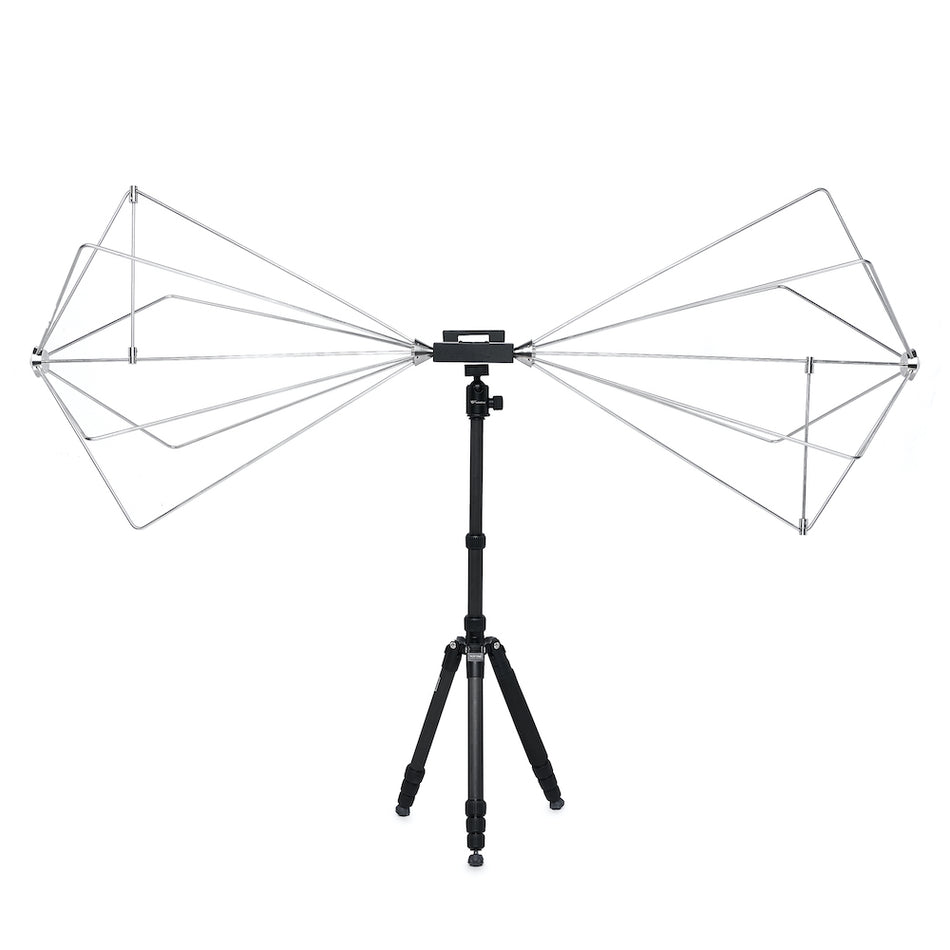

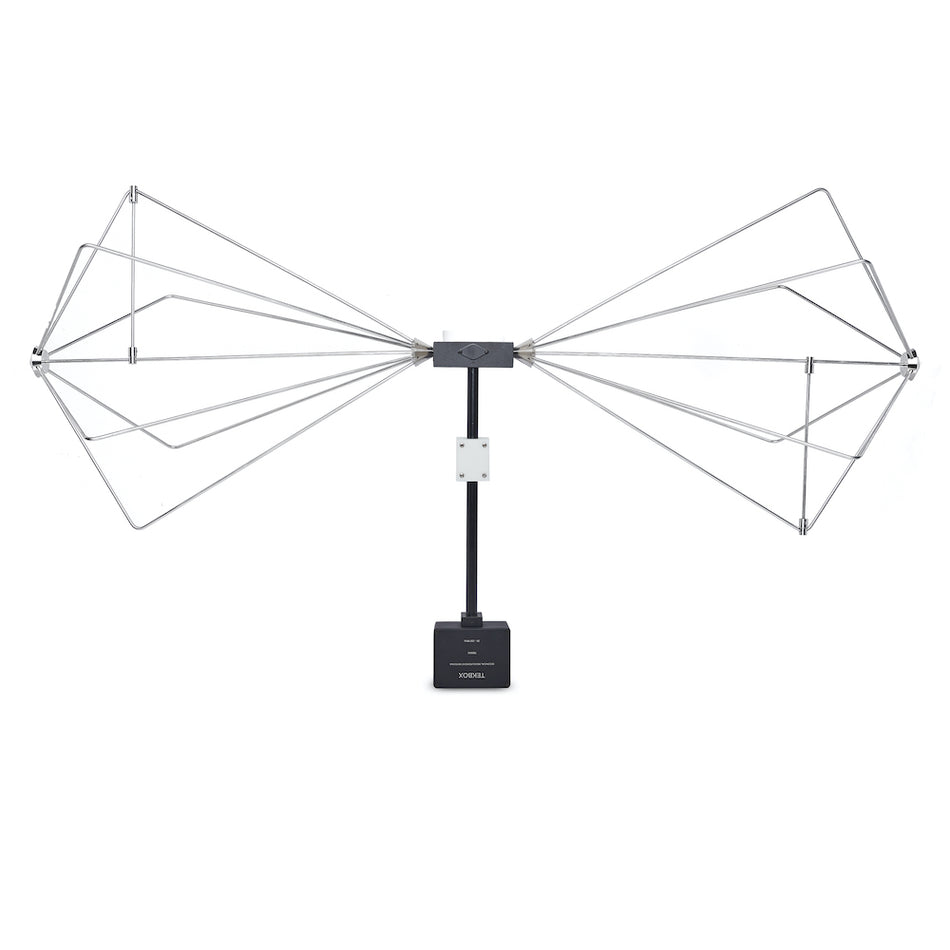

The TBMA2 is a biconical measurement antenna for EMC radiated emission testing and generating defined field strength. With its affordable price it is an excellent choice for any lab carrying...

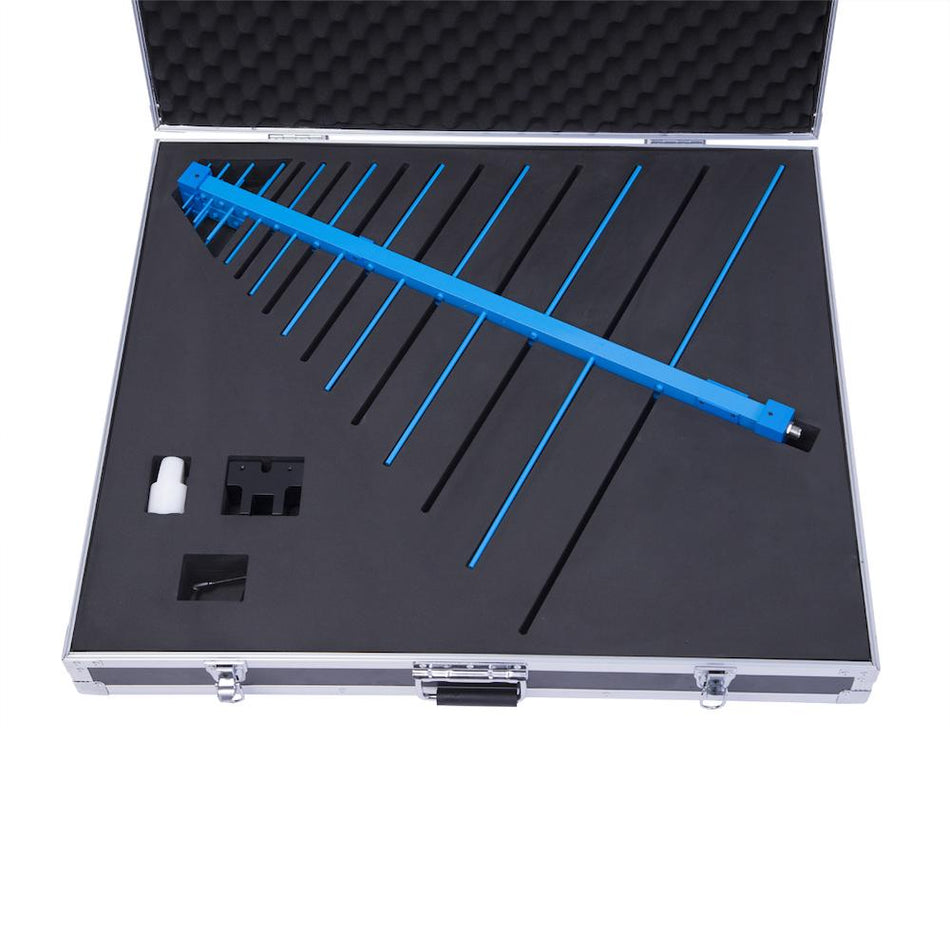

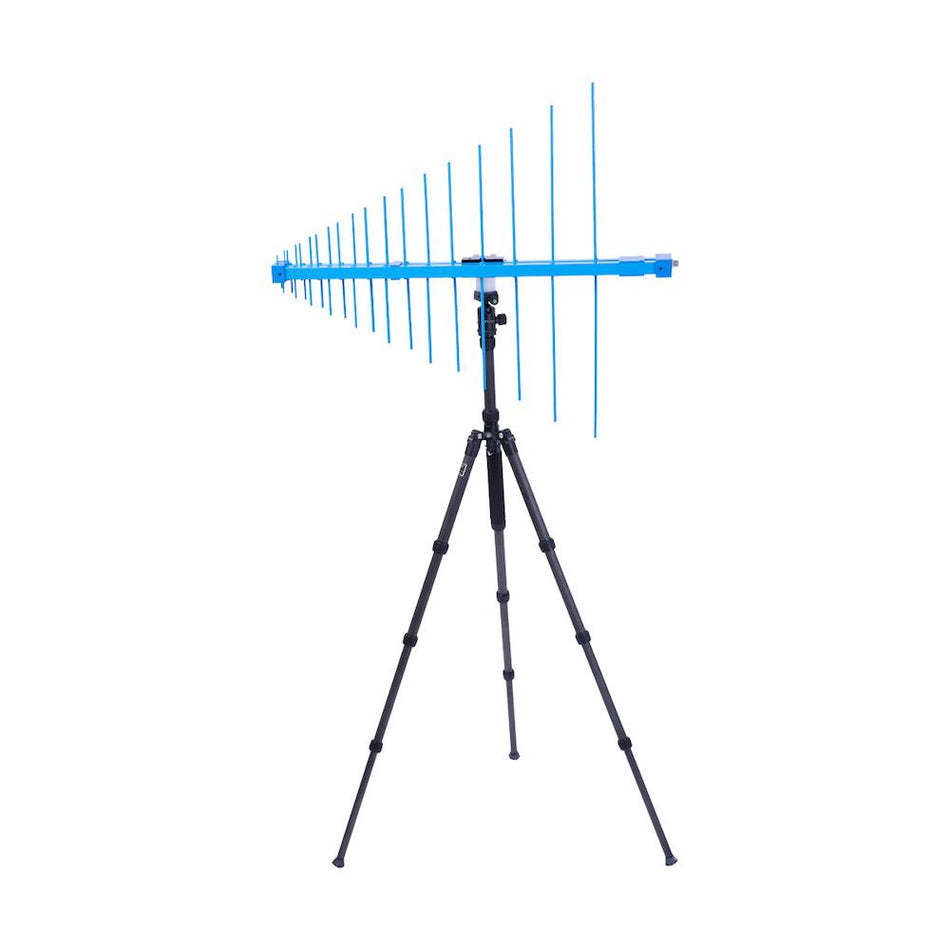

The TBMA3 is an affordable logarithmic periodic measurement antenna, targeting radiated noise EMC pre- compliance testing. The TBMA3 is characterized from 250 MHz to 1.3 GHz and has VSWR and...

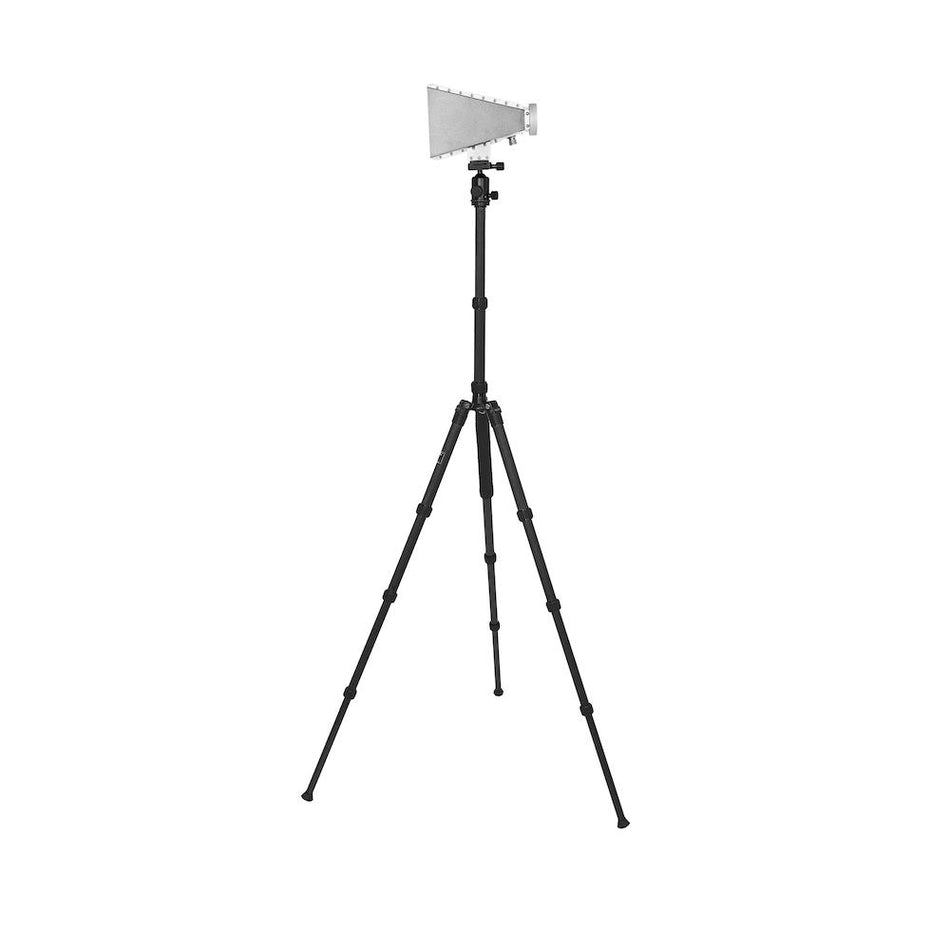

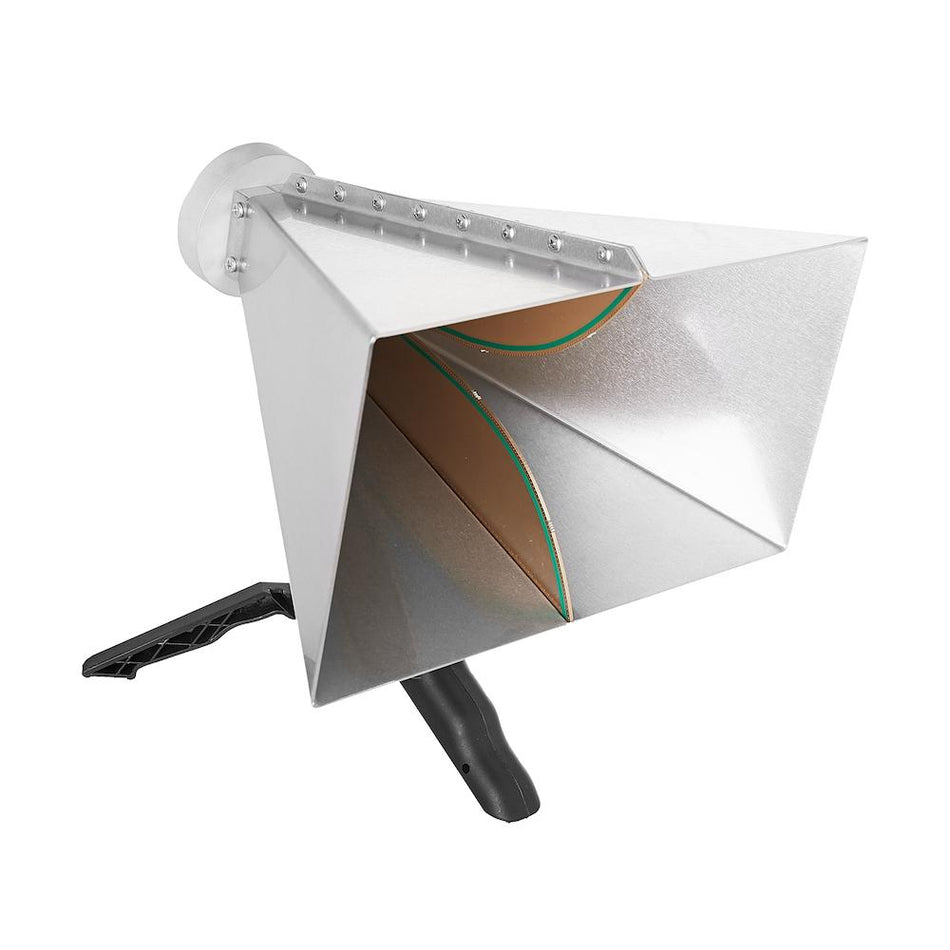

CISPR 16 divides the frequency range into several bands and defines specific antennas for each of these bands. For the frequency range above 1 GHz, CISPR 16 specifies using wideband...

DOCUMENTATION Antenna tripods and mounting adapters manual

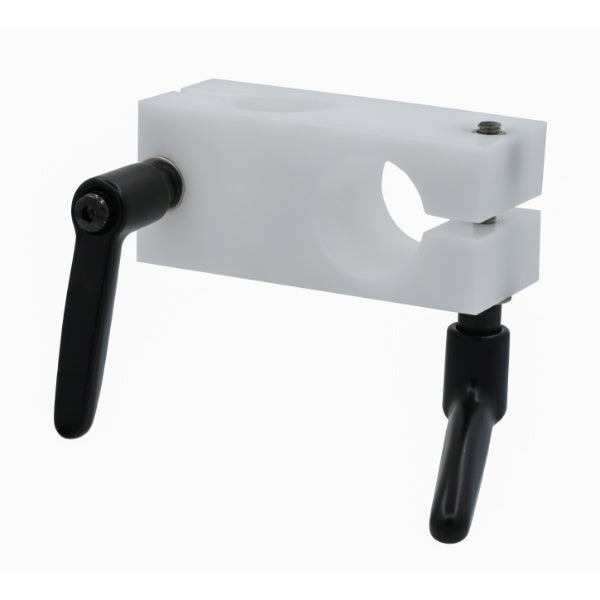

Diameter 22 mm POM adapter with standard 3/8 DOCUMENTATION Antenna tripods and mounting adapters manual

DOCUMENTATION Antenna tripods and mounting adapters manual

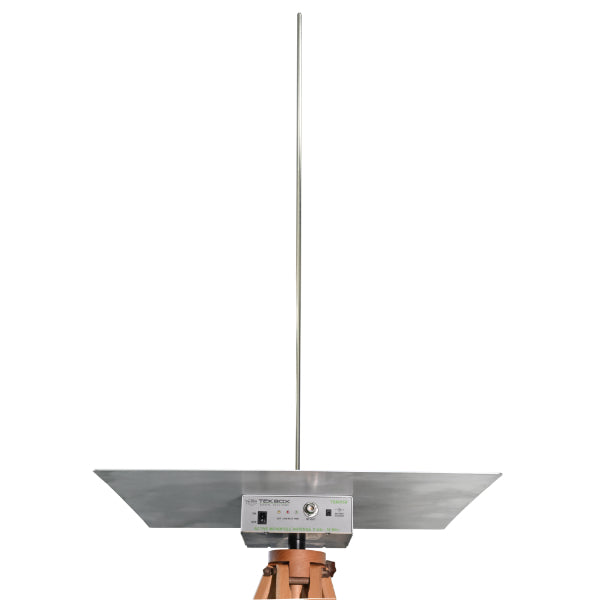

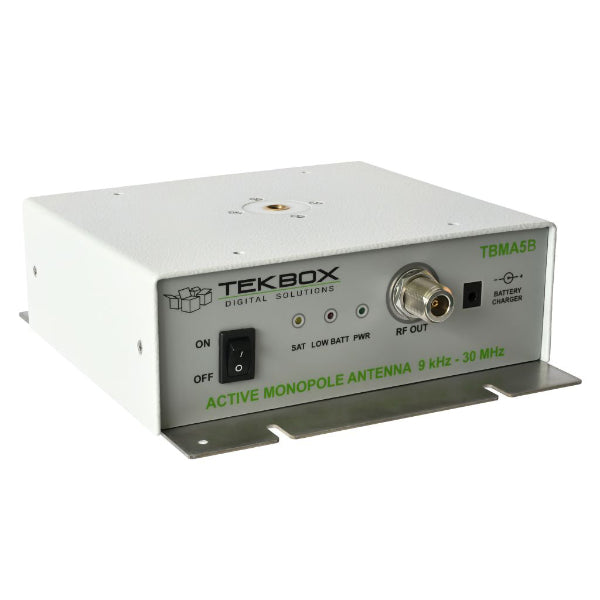

The TBMA5B is an active Monopole Antenna, expanding the Tekbox product range of affordable EMC pre-compliance test equipment. The monopole antenna is designed for radiated emission measurements within the frequency...

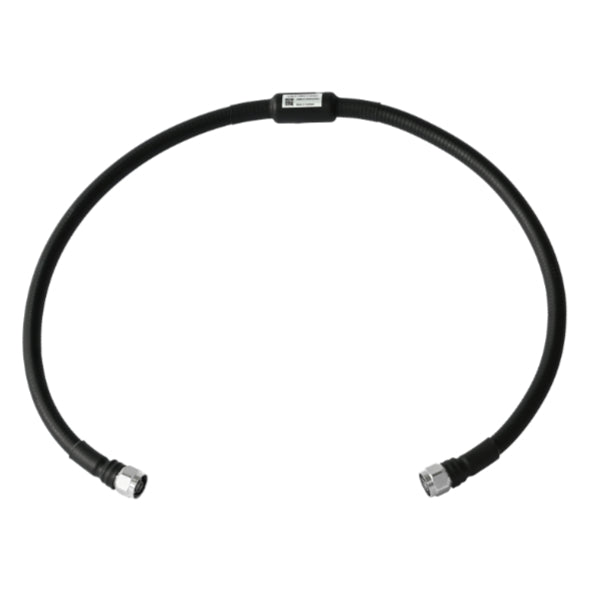

corrugated, slotted coaxial cable for 30 cm loop

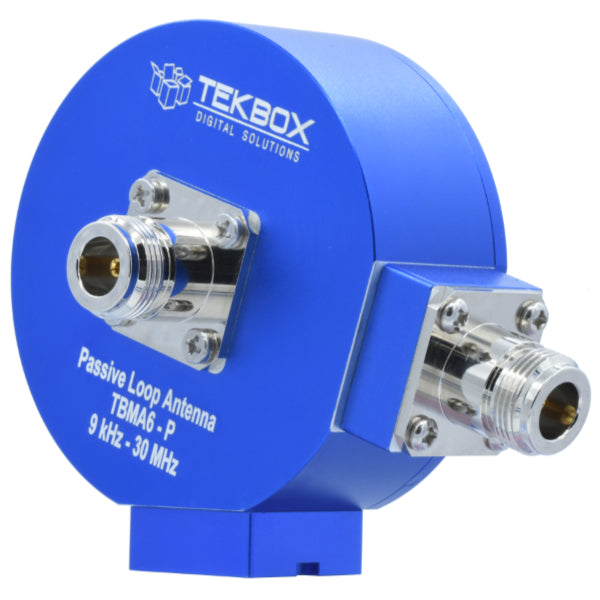

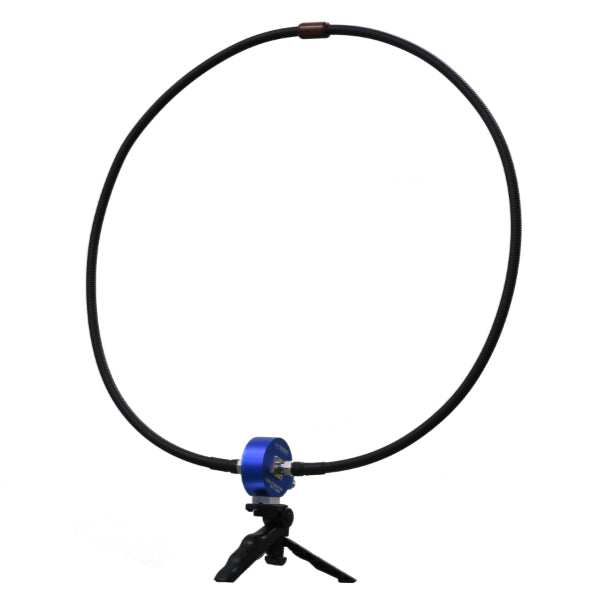

The TBMA6-P is a passive Loop Antenna, expanding the Tekbox product range of affordable EMC pre-compliance test equipment. The loop antenna is designed for radiated emission measurements in the frequency...

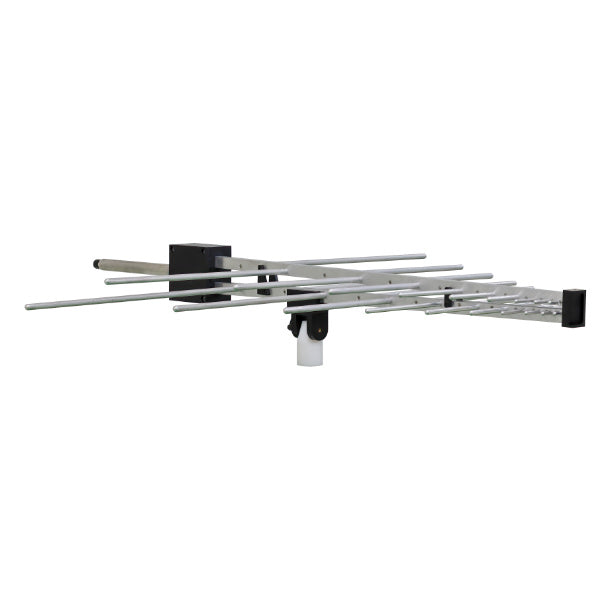

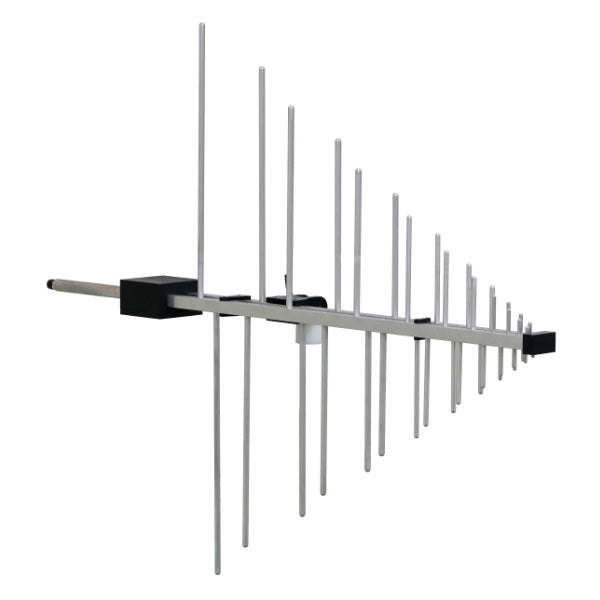

The TBMA7 is an affordable logarithmic-periodic measurement antenna, targeting radiated noise EMC precompliance testing. The TBMA7 is characterized from 150 MHz to 3000 MHz and has VSWR and antenna factor...

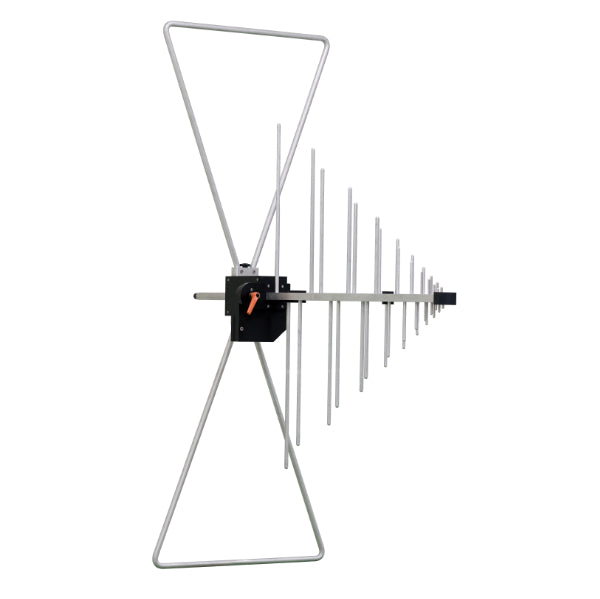

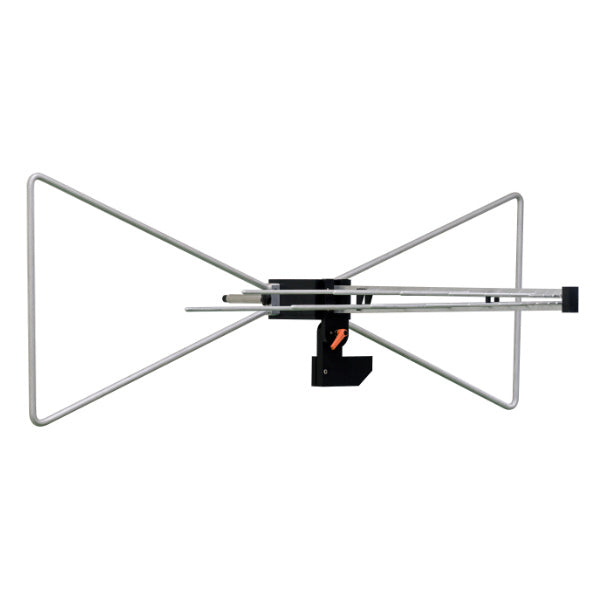

TBMA8 30 MHz – 3000 MHz Hybrid Measurement Antenna The TBMA8 is an affordable hybrid measurement antenna, a combination of a biconical antenna with a logarithmic periodic antenna, covering a...
