Coupling De-Coupling Networks

Coupling De-Coupling Networks (CD) are utilised for conducted immunity testing in accordance with IC 61000-4-6.

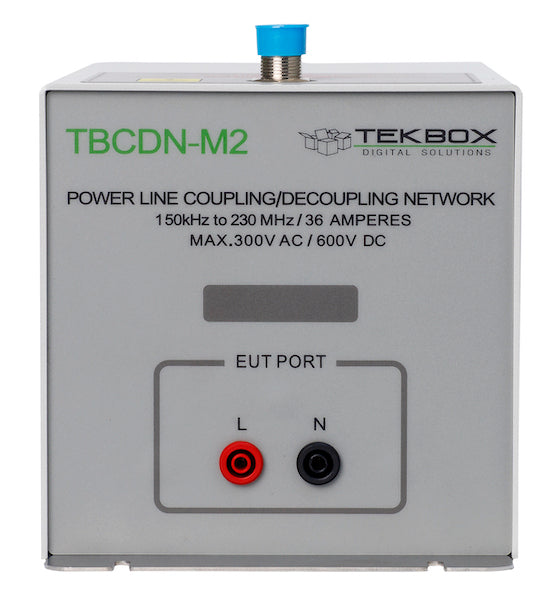

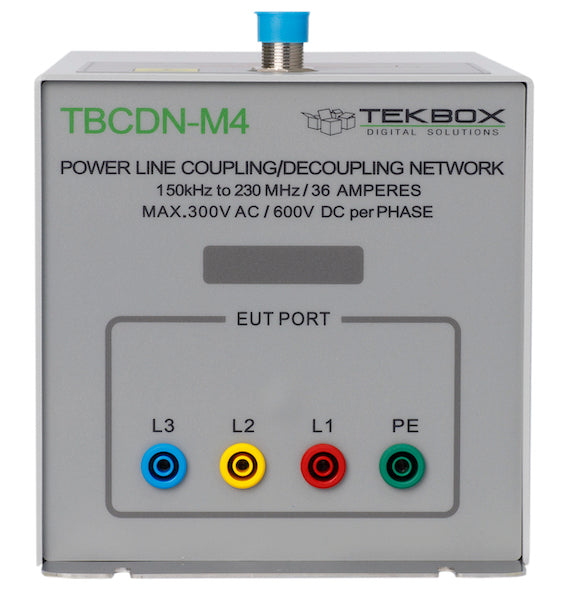

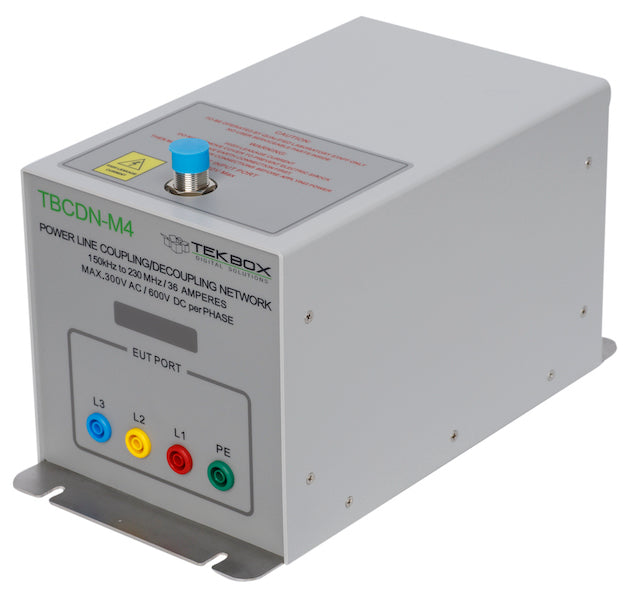

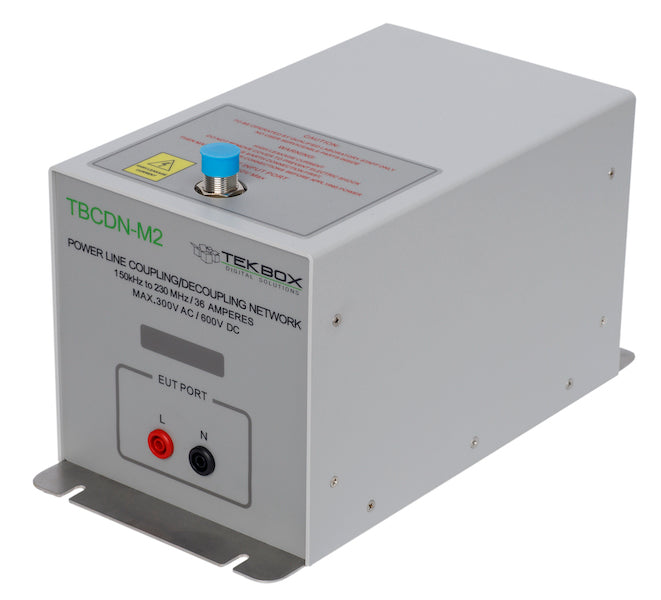

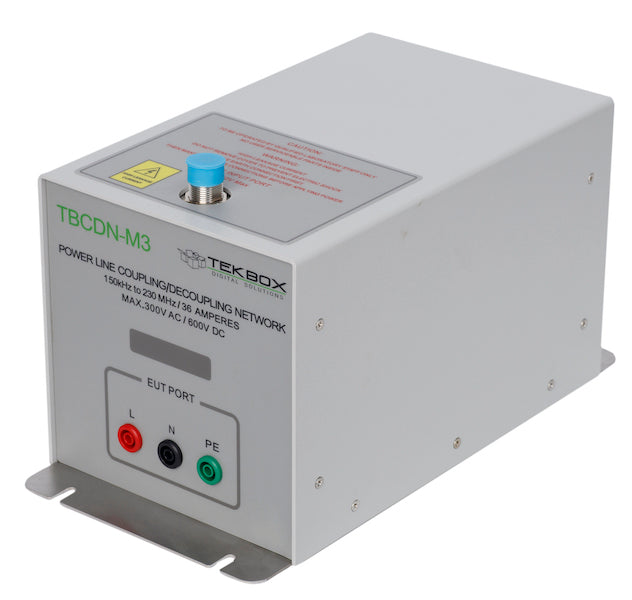

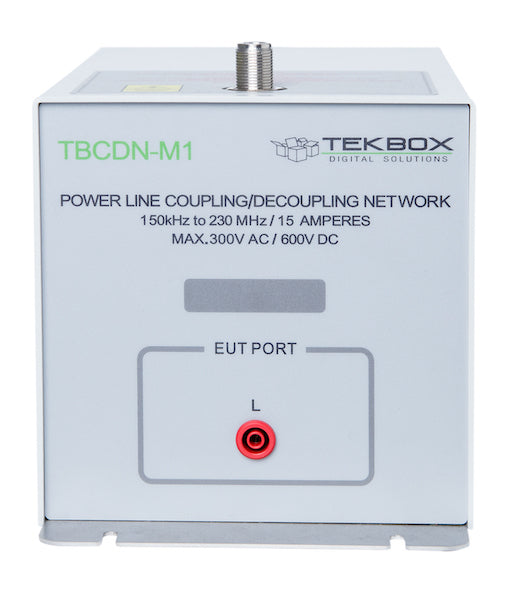

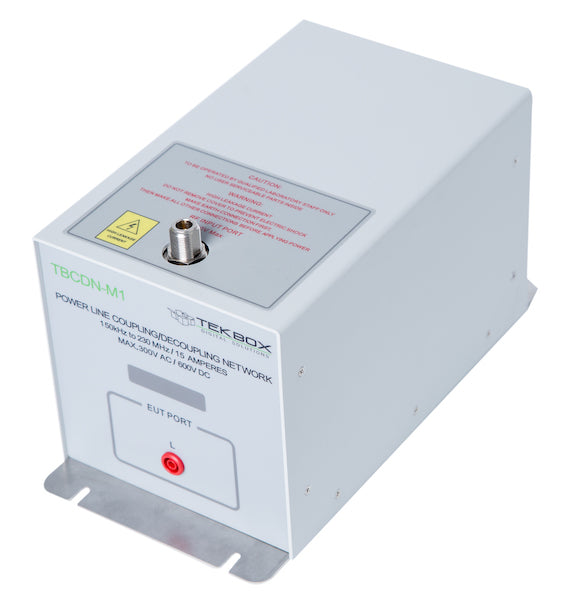

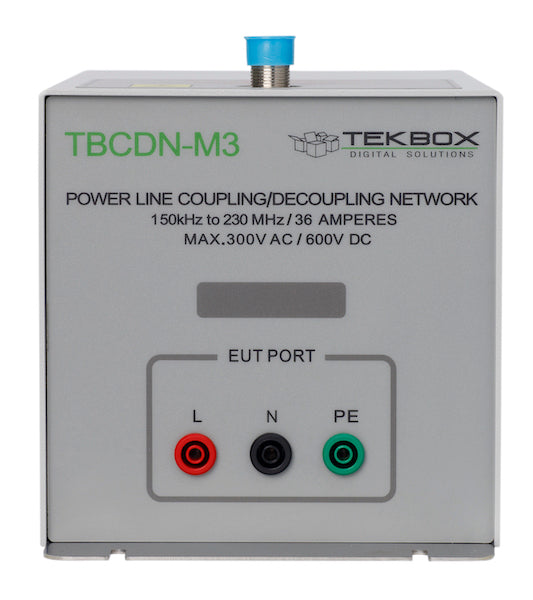

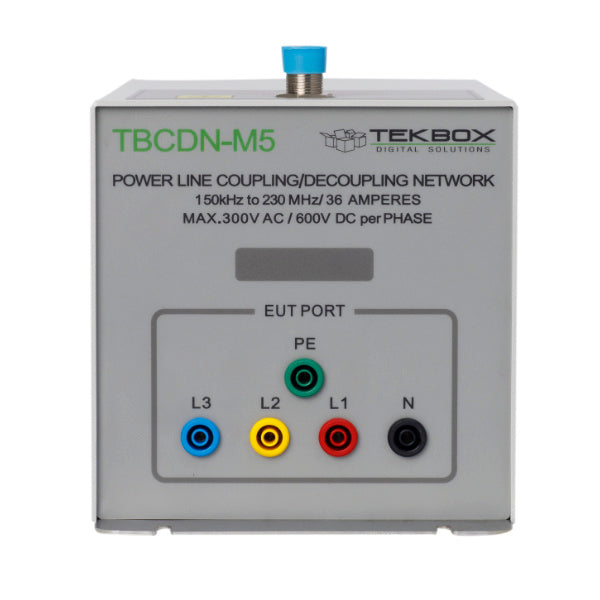

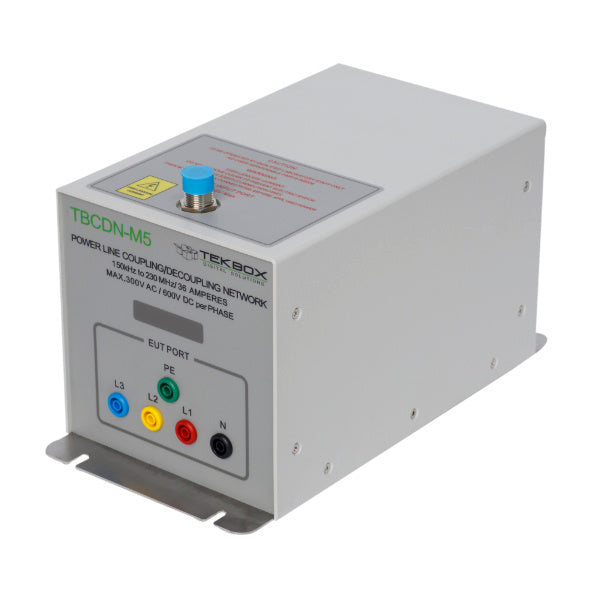

The TBCDN-Mx series complies with Annex D2 of IC 61000-4-6. It is designed to inject common mode disturbance signals into unscreened AC and DC power supply lines in the frequency range of 150 kHz to 230 MHz.
