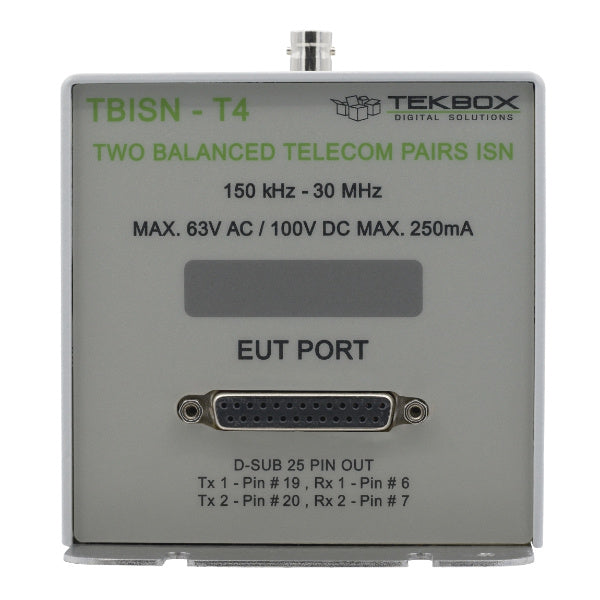

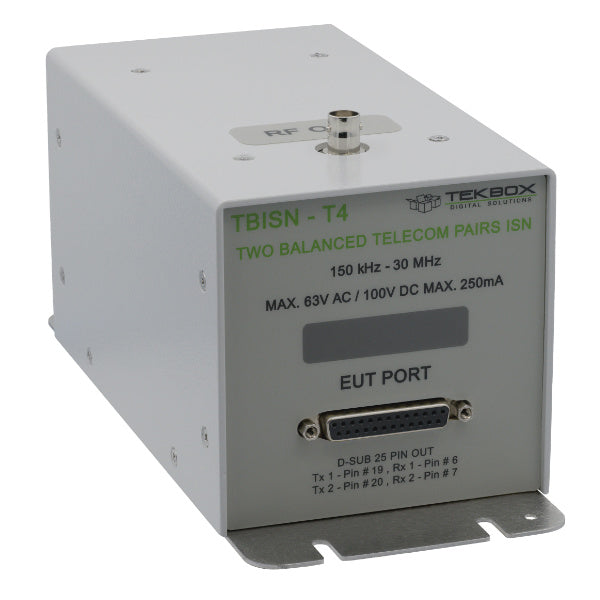

TBISN-T4 Two balanced pairs ISN
Per CISPR 22 (2005), ISN’s are specialized coupling decoupling devices used for measuring the conducted asymmetric common mode radio interference voltages of ITE. TBISN -T4 has been designed to perform conducted emissions test per CISPR 22 on two balanced p air telecom lines. It meets the requirements for Longitudinal Conversion Loss defined in CISPR 22 item 9.6.2.c)1) page 24 accepted by CISPR.
Specifications
- Frequency Range: 150 kHz – 30 MHz
- Impedance (asymmetric): 150 Ω± 20 Ω
- Phase (asymmetric): 0° ± 20°
- Longitudinal Conversion Loss (LCL): CISPR 22 item 9.6.2.c)1) page 24
- Voltage Division Ratio (VDF) for asymmetrical voltage: 10 dB +/- 1 dB

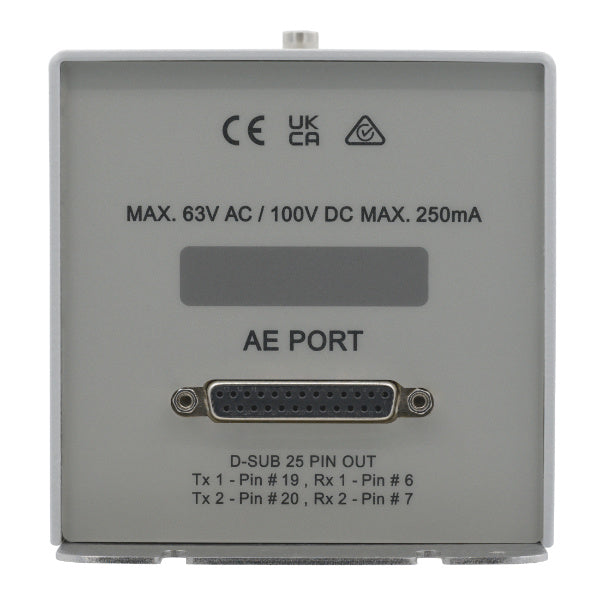

- EuT, AE Terminals: D-SUB 25
- Measuring Port: 50Ω BNC
- Max. Voltage: 63V AC / 100V DC
- Max. Current: 250mA
- Insertion Loss (Differential Mode): < 3dB
- Decoupling AE-EuT: 150kHz to 1.5 MHz > (35dB to 55dB); > 1.5MHz ( > 55dB)
- Outer dimensions (W x H x D): 100 x 100 x 235 mm
- Weight approx.: 1.0 kg
- According to standards: CISPR 16-1-2,CISPR 22,CISPR 32 & CISPR 15
- Operating Temperature: +5° C to 40°
- Relative humidity: up to 80%
