TBRFH4 RF Housings

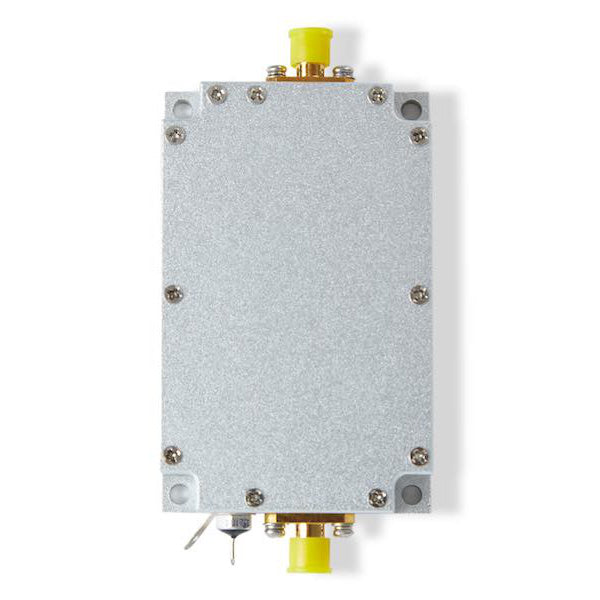

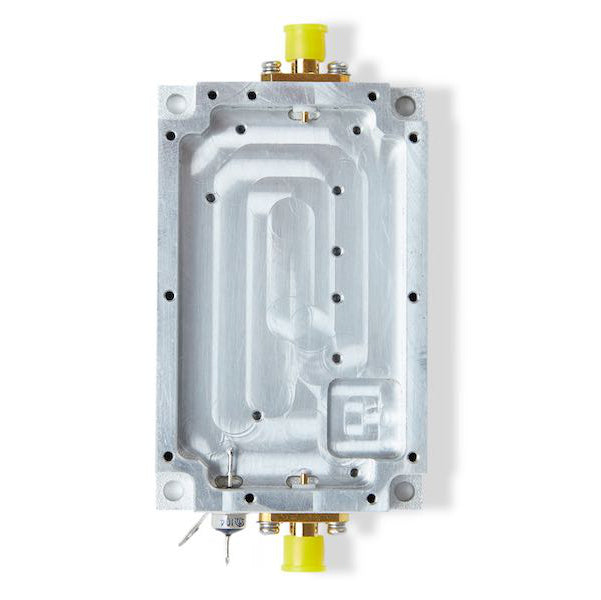

The TBRFH4 housing is ideal for RF building blocks such as amplifiers or similar. The housing is milled from aluminium and equipped with SMA-female connectors and a feed-through capacitor for the power supply line.
SPECIFICATION
- Outer dimensions [mm]: 48 x 76 x 12
- Inner dimensions [mm]: 40,2 x 67,7 x 6.5
- Material: Alu A6061
- Surface sandblasted
- RF connectors: SMA-Female
- detail: Feed through capacitor, 10nF, 50V
- Weight [g]: 130
