TBAS2 - SMA 6GHz Attenuator/Termination Set

  • $139.00

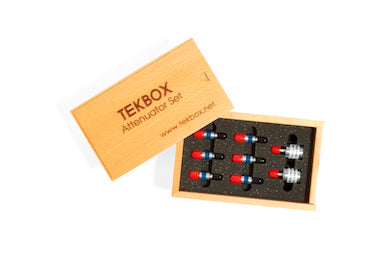

The TBAS2 RF attenuator set consists of a 3dB, 6dB, 10dB, 15dB, 20dB and 20dB attenuator in a beech wood box. Furthermore it contains two pieces SMA 50 Ohm terminations.

SPECIFICATIONS

  • Attenuators: 3, 6, 10, 15 dB      +/- 0.5 dB
    20, 30 dB             +/- 0.8 dB
  • Frequency Range: DC - 6GHz, VSWR <1.3
  • Power rating: 2W @ -55 to 70°C; up to 125°C with 50% power de-rating
  • Connectors: SMA-male/SMA-female; bidirectional
  • Termination: 50 Ohm
  • Frequency Range: DC - 6GHz, VSWR <1.2
  • Power rating: 1W @ -40 to 70°C; up to 70°C with 50% power de-rating
  • Connectors: SMA-male
  • Dimensions: 150mm x 95mm x 45mm
  • Weight: 490g



    Documentation

    TBAS2 User Manual
