TBAS3 - 10W 3GHz N RF Attenuator Set

  • $139.00

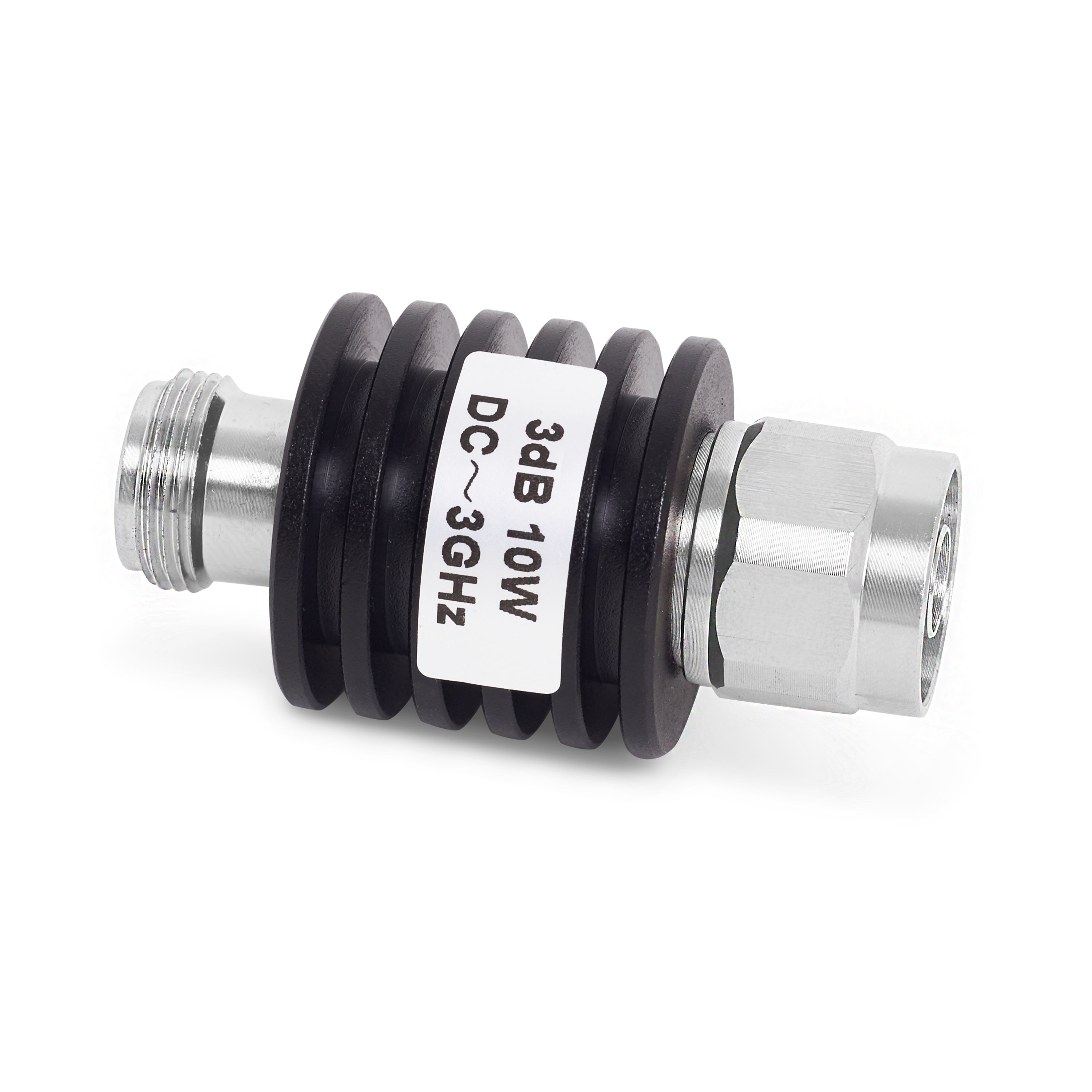

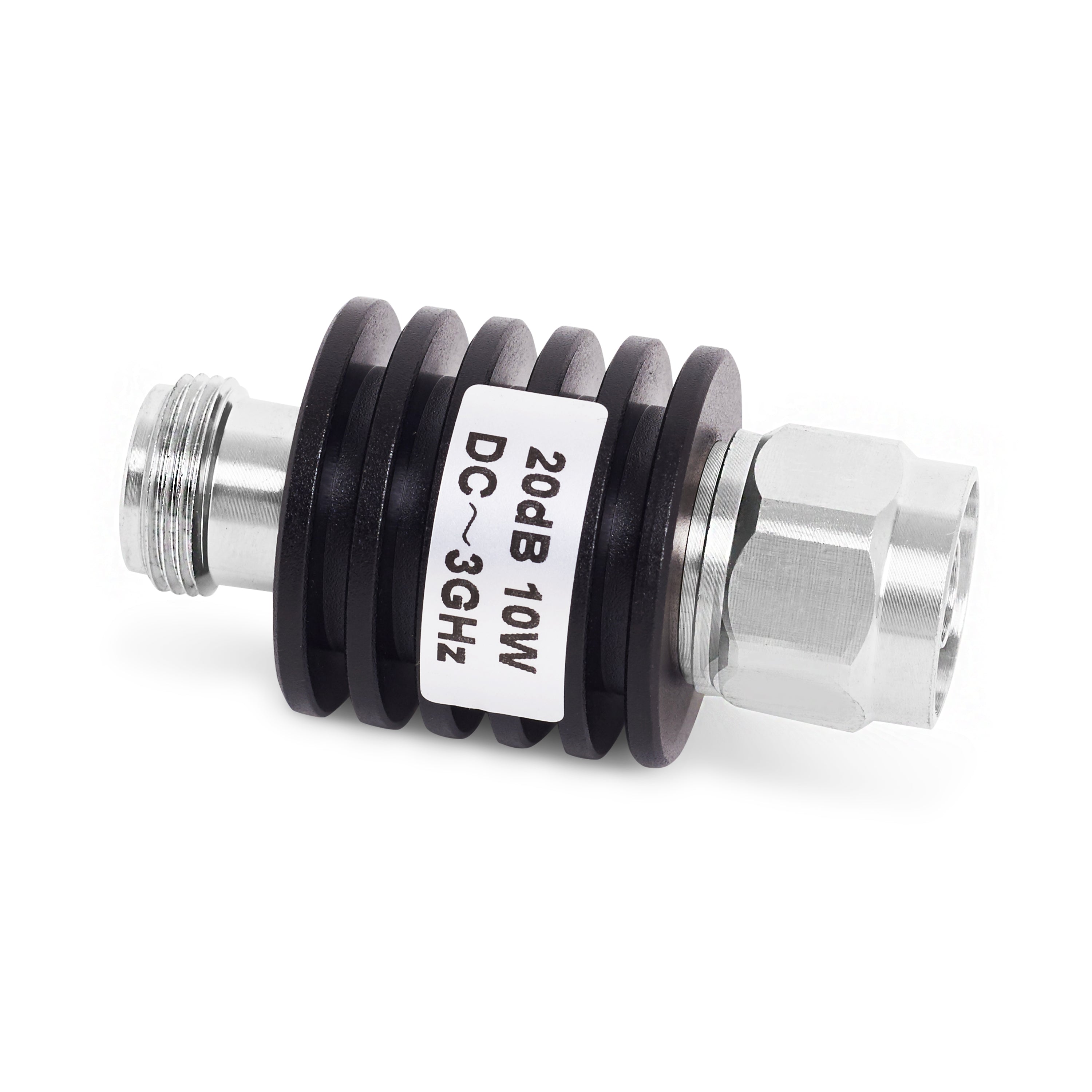

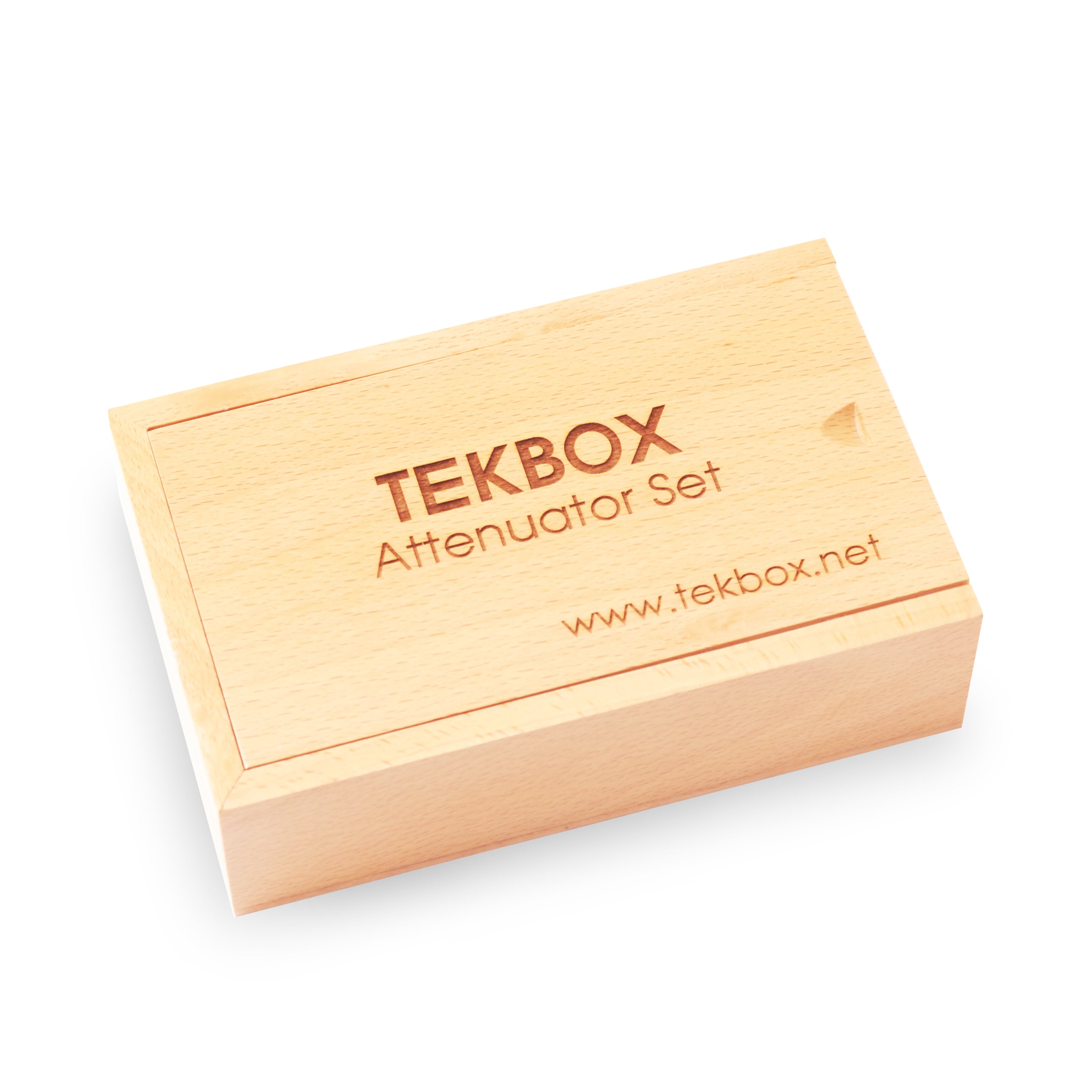

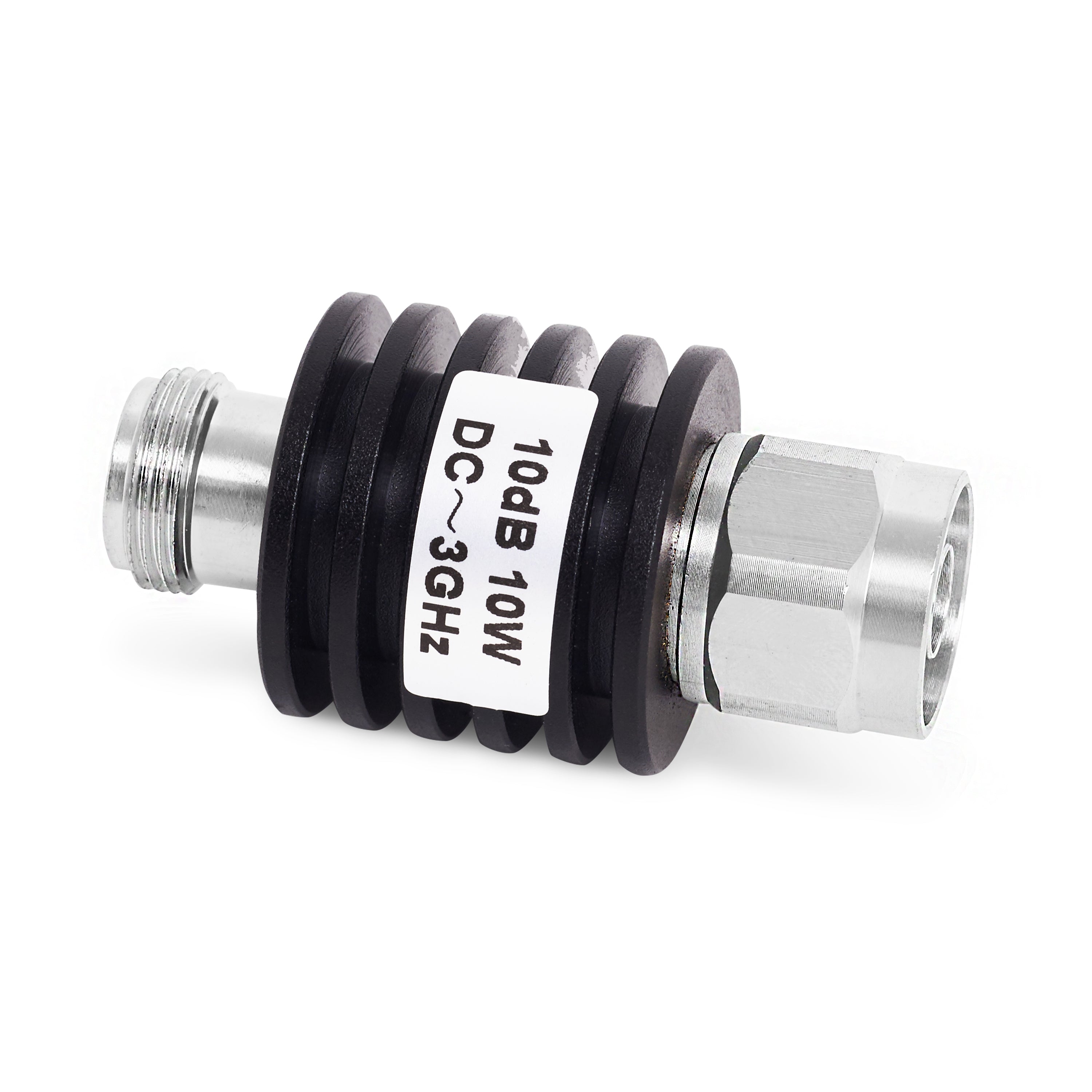

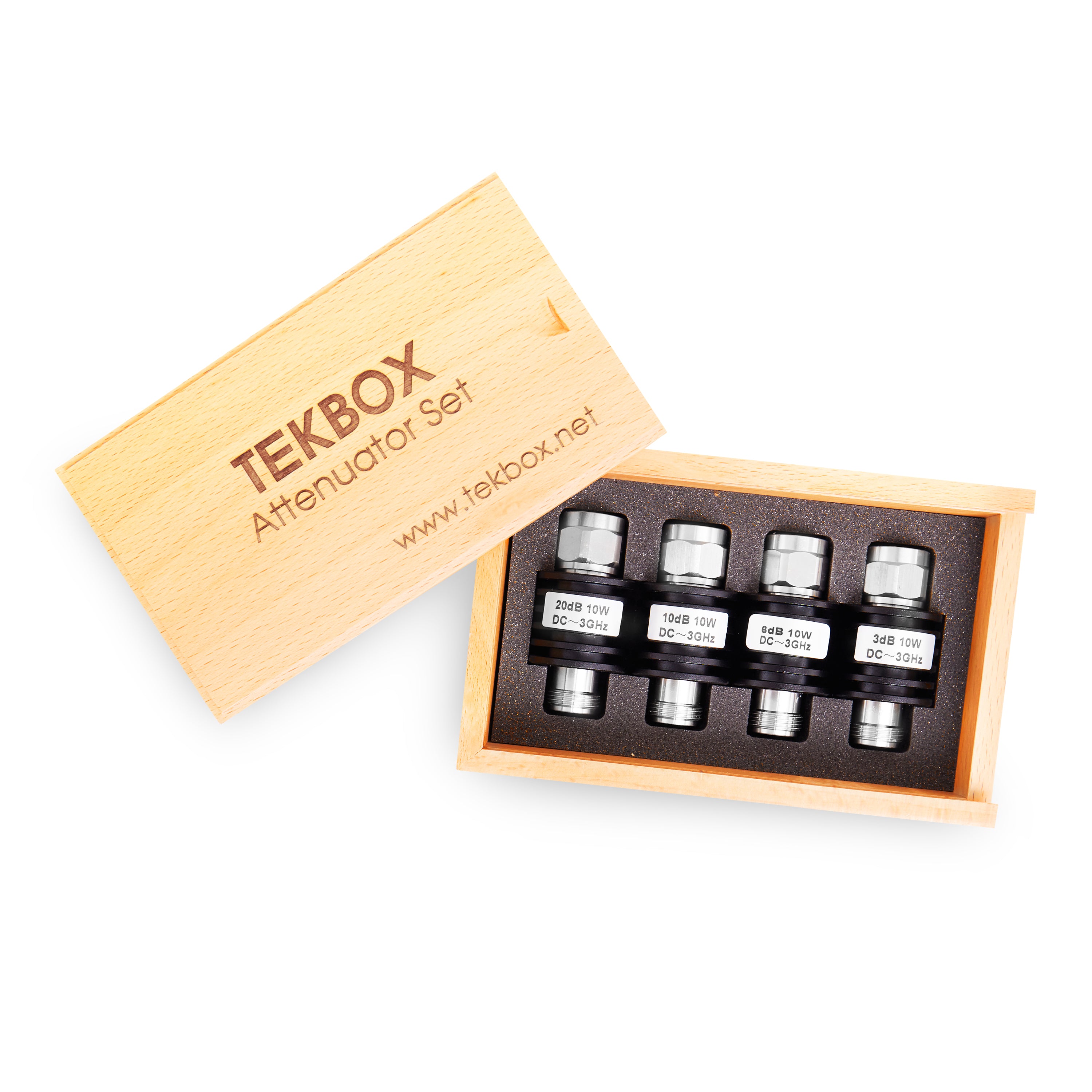

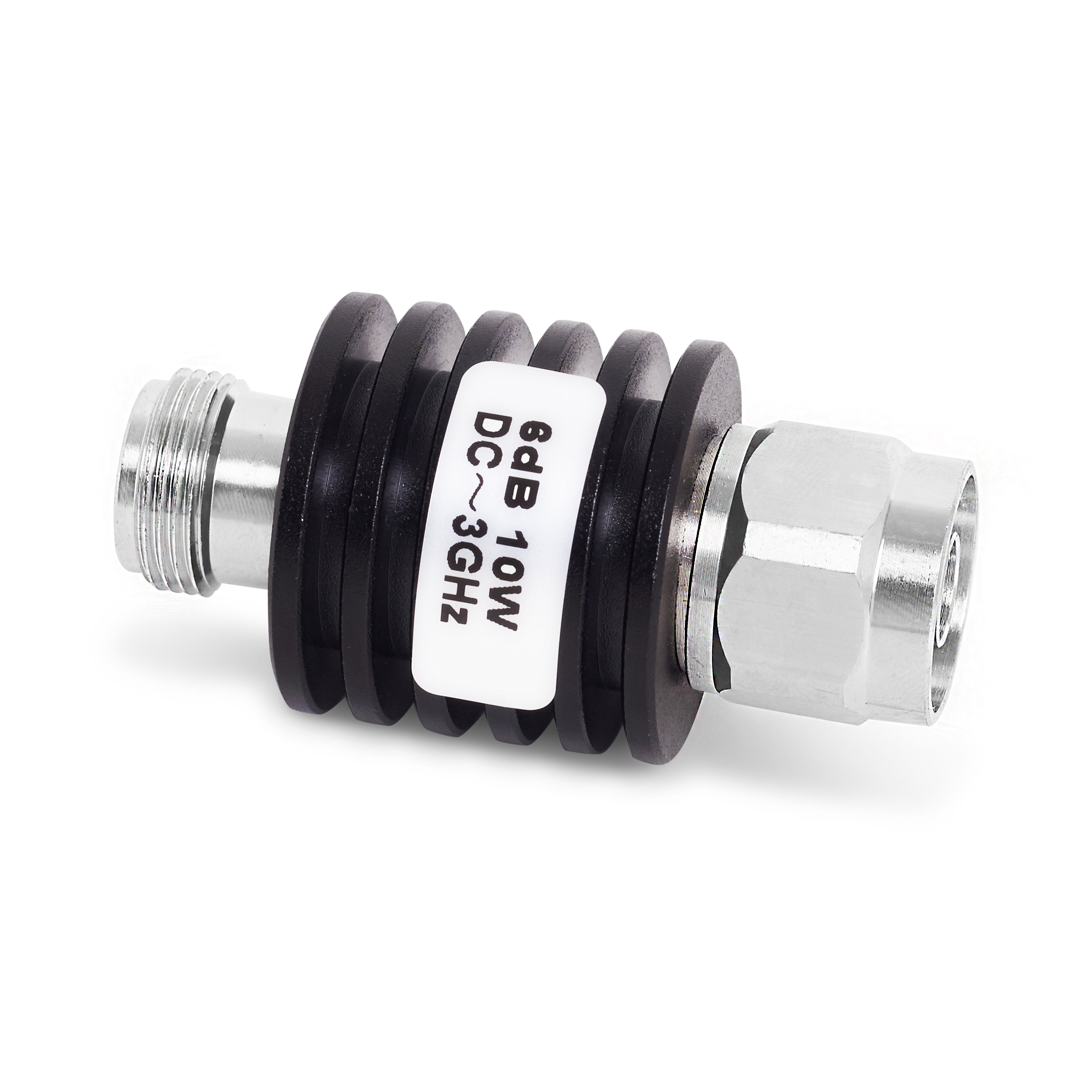

The TBAS3 RF attenuator set consists of  a 3dB, 6dB, 10dB and 20dB attenuator in a beech wood box.

Specification

  • Tolerance: 3, 6, 10 dB +/- 0.5 dB
    20 dB +/- 0.8 dB
  • Frequency range: DC-3GHz, VSWR < 1.3
  • Power rating: 10W @ -55 to 40°C; up to 70°C with 50% power de-rating
  • Connectors: N-male / N-female; bidirectional
  • Dimensions: 150mm x 95mm x 45mm
  • Weight: 505g

Documentation

TBAS3 User Manual
