| Model |

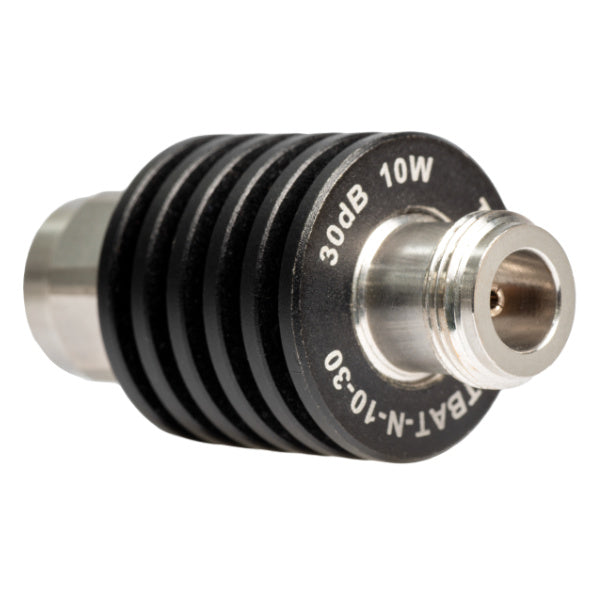

TBATT-N-10-3
TBATT-N-10-6
TBATT-N-10-10
TBATT-N-10-20
TBATT-N-10-30 |

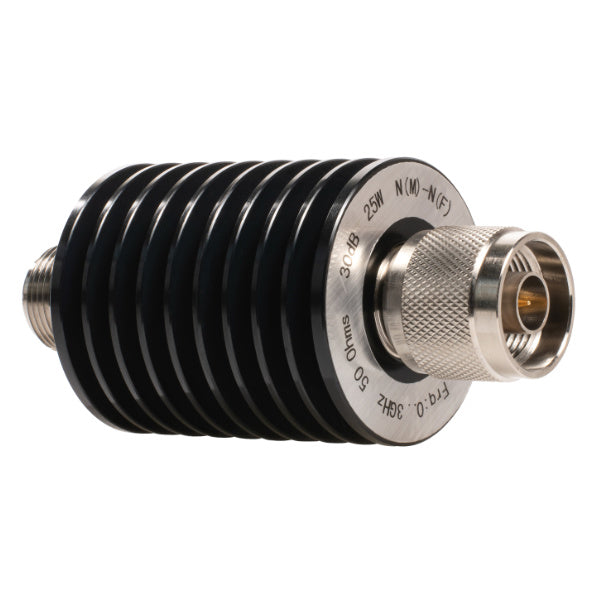

TBATT-N-25-3
TBATT-N-25-6
TBATT-N-25-10
TBATT-N-25-20
TBATT-N-25-30 |

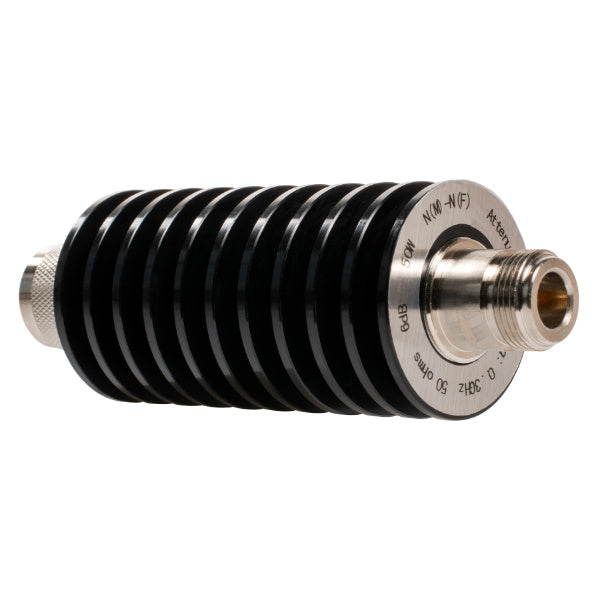

TBATT-N-50-3
TBATT-N-50-6
TBATT-N-50-10
TBATT-N-50-20
TBATT-N-50-30 |

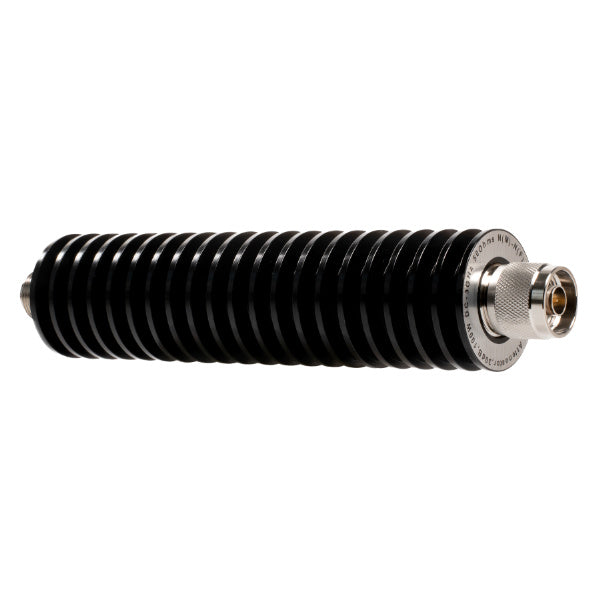

TBATT-N-100-3
TBATT-N-100-6
TBATT-N-100-10
TBATT-N-100-20
TBATT-N-100-30 |
| RF Connector |
N-male / N-female |
N-male / N-female |
N-male / N-female |
N-male / N-female |
| Frequency Range |
DC – 3 GHz |
DC – 3 GHz |
DC – 3 GHz |
DC – 3 GHz |
| VSWR |
< 1.3 |
|
|
|
| Tolerance |
3, 6, 10dB: ± 0.5 dB
20 dB: ± 0.8 dB
30 dB: ± 1 dB |
3, 6, 10dB: ± 0.5 dB
20 dB: ± 0.8 dB
30 dB: ± 1 dB |
3, 6, 10dB: ± 0.5 dB
20 dB: ± 0.8 dB
30 dB: ± 1 dB |
3, 6, 10dB: ± 0.5 dB
20 dB: ± 0.8 dB
30 dB: ± 1 dB |
| Power rating |
10 W |
25 W |
50 W |
100 W |
| Attenuation |
3 dB, 6 dB, 10 dB, 20 dB, 30dB |
3 dB, 6 dB, 10 dB, 20 dB, 30dB |
3 dB, 6 dB, 10 dB, 20 dB, 30dB |
3 dB, 6 dB, 10 dB, 20 dB, 30dB |
