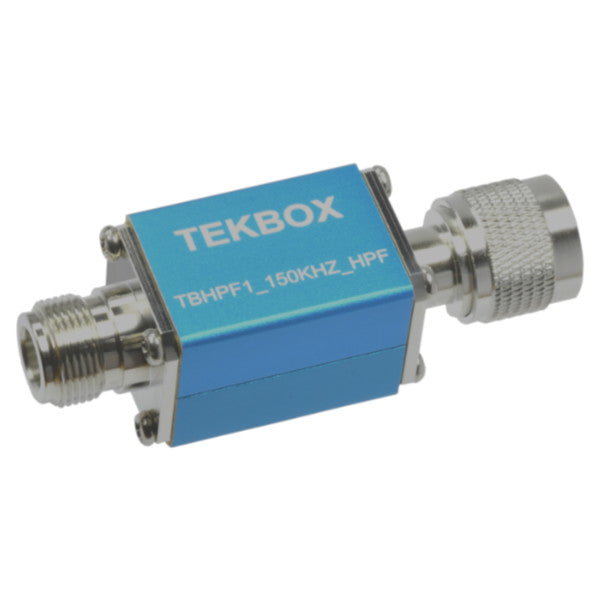

TBHPF1-150KHZ High Pass Filter

TBHPF1-150KHZ High Pass Filter

  • $89.00


150 kHz Highpass Filter for protection of spectrum analyzer or EMI-receiver RF inputs against high amplitude subharmonics and residual 50 Hz voltage in conducted emission measurement set ups.

SPECIFICATIONS

  • High Pass Filter, reflective, 50 Ohm
  • 3dB bandwidth: 150 kHz – 3 GHz
  • Maximum input voltage: 100V; 250V for < 5 sec.
  • Maximum permitted input current at frequencies < 150kHz and open output: 650 mA
  • Maximum input power at frequencies 300 kHz – 1 GHz: 10W
  • Connectors: N-Male / N-Female
  • Dimensions: 26 x 26 x 82 mm
  • Weight: ca. 100g

    DOCUMENTATION

    TBHPF1 150kHz High Pass Filter Manual
