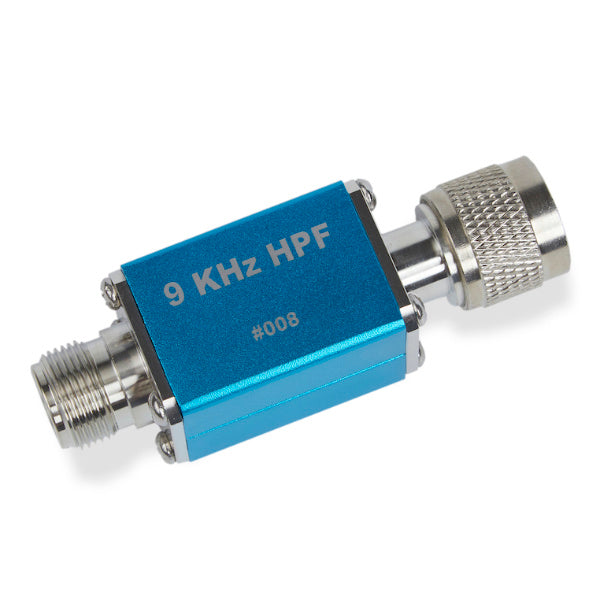

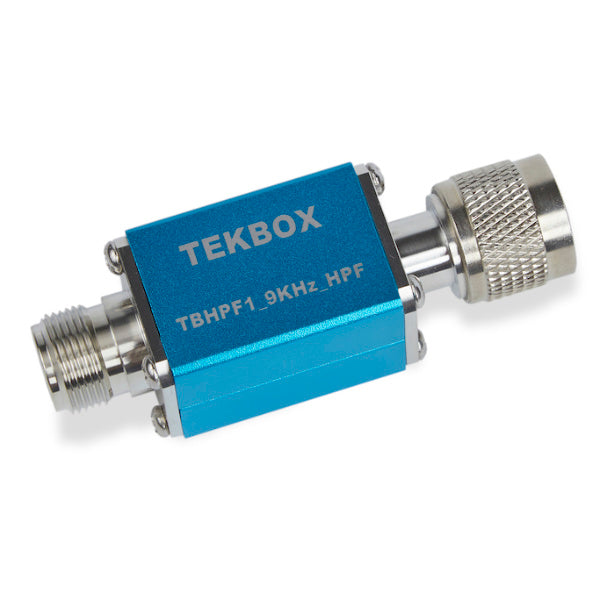

TBHPF1-9KHZ High Pass Filter
9 kHz Highpass Filter for protection of spectrum analyzer or EMI-receiver RF inputs against high amplitude subharmonics and residual 50 Hz voltage in conducted emission measurement set ups
SPECIFICATIONS
- High Pass Filter, reflective, 50 Ohm
- 3dB bandwidth: 9 kHz – 3 GHz
- Maximum input voltage: 100V; 250V for < 5 sec.
- Maximum permitted input current at frequencies < 9kHz and open output: 160 mA
- Maximum input power at frequencies 20 kHz – 1 GHz: 10W
- Resistive dampening to prevent pulses with high rise time cause excessive ringing
- Connectors: N-Male / N-Female
- Dimensions: 26 x 26 x 82 mm
- Weight: ca. 100g
DOCUMENTATION
TBHPF1 9kHz High Pass Filter Manual
