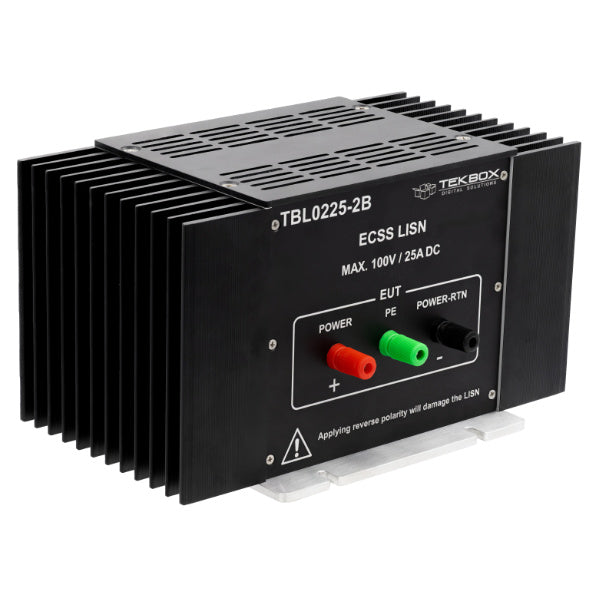

TBL0225-2B 2uH Line Impedance Stabilisation Network LISN - ECSS-E-ST-20-07C
The TBL0225-2B is a two-paths 50 Ω // 2 µH LISN characterized from 10 Hz – 200 MHz . It is based on the standard ECSS-E-ST-20-07C Rev 1. The standard provides the general schematic of the LISN and allows for some flexibility in component values. The TBL0225-2B implementation aims for use in EMC measurements of satellites and spacecraft. The LISN does not have an output for conducted emission measurements; instead, it merely functions as a network for line impedance stabilisation. An RF current monitoring probe is used to measure conducted emissions, according to the standard.
The 2 µH inductor mimics the typical inductance of the supply wire harness in spacecraft or satellites.
The LISN is inserted into the power line and power return line of the EUT.
Specifications
- LISN type: V-AMN, 50 Ω // 2 µH
- Characterized frequency range: 10 Hz – 200 MHz
- DC Resistance: 100 mΩ per path
- Internal capacitor: 10000 µF between “+” path and “-“ path; polarized
- Maximum current: 25 A continuous
- Operating voltage range: 0 – 100V DC

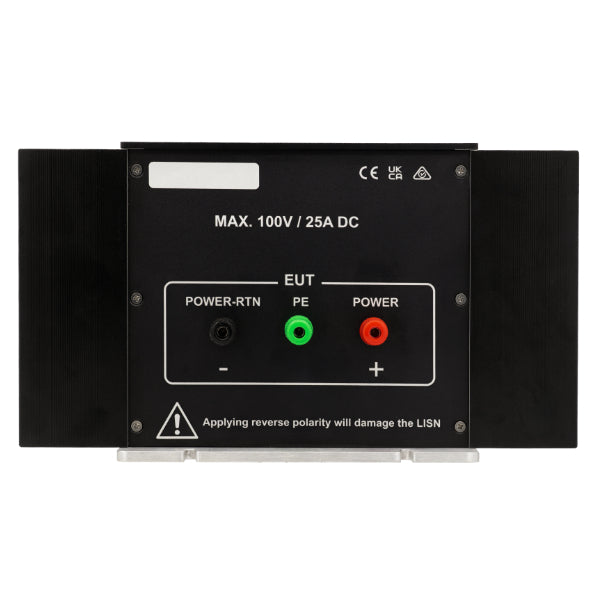

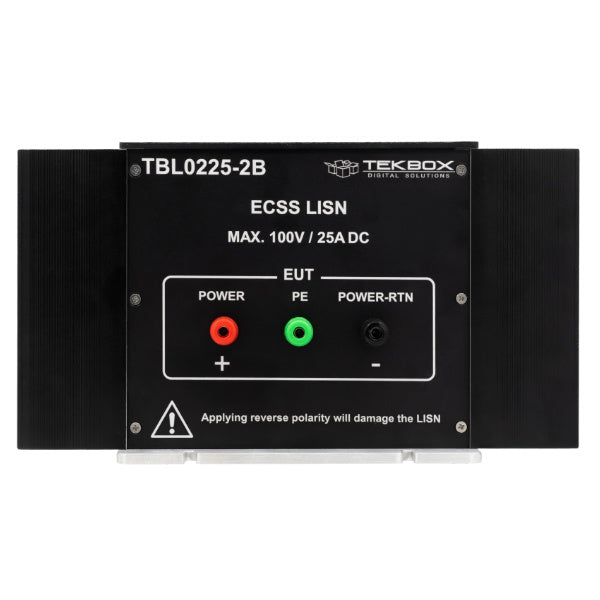

- EUT / SOURCE terminals: 4 mm banana sockets
- Dimensions: W 260 mm x L 140 mm x H 150 mm
- Weight: 4.1 kg
