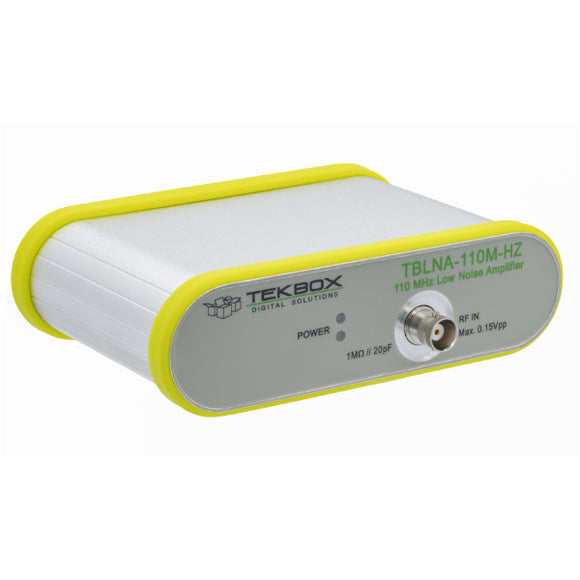

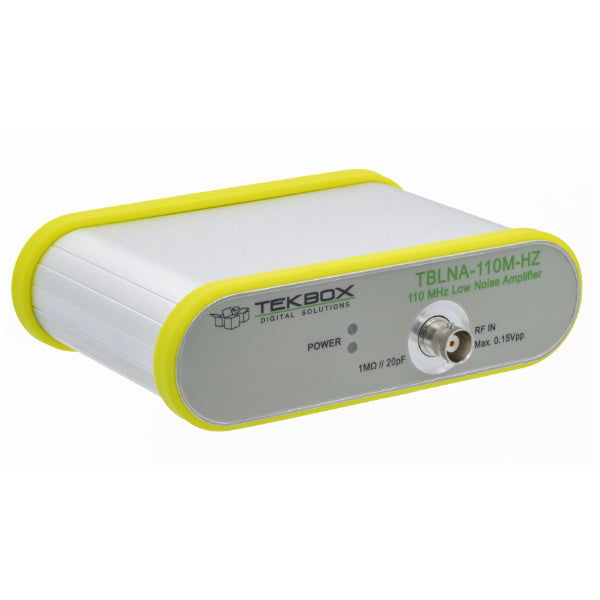

TBLNA-110M-HZ - DC-coupled Impedance Converter

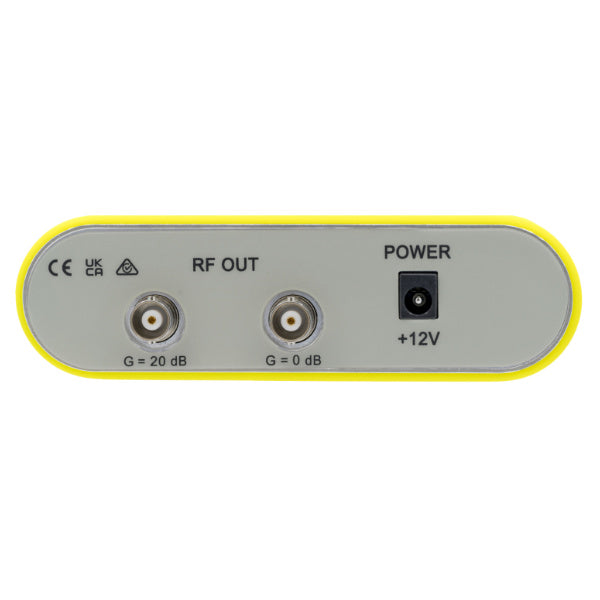

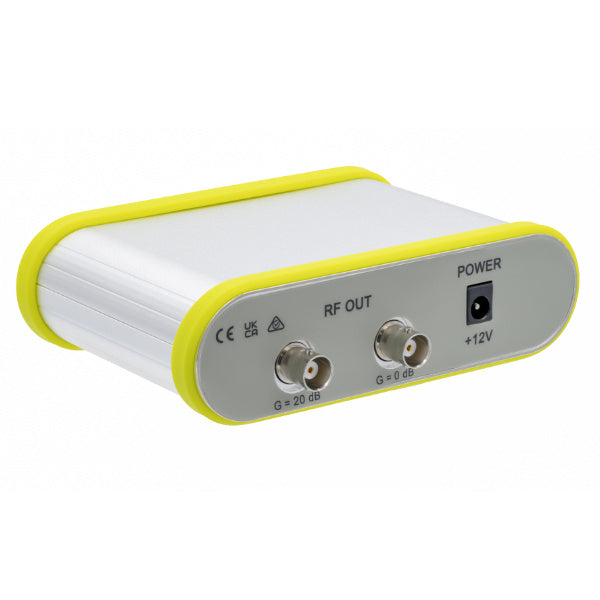

The TBLNA-110M-HZ is a DC-coupled Impedance Converter from 1 MΩ to 50 Ohm with a flat response in the frequency range from DC to 110MHz and a 3 dB bandwidth from DC to 500 MHz. One of the impedance converter’s two separate outputs has a gain of 0 dB, while the other has a gain of 20 dB. When the TBLNA110M-HZ is used with a 1:10 oscilloscope probe, this corresponds to a gain of -20 dB or 0 dB.
Application
In-circuit measurements in 50 Ohm systems, using standard oscilloscope probes.
High impedance frontend for spectrum analyzers and other RF-equipment with 50 Ohm inputs.
Specifications
General specification
- Flat frequency range: DC – 110 MHz, typ.
- 3 dB frequency range: DC – 500 MHz, typ.
- Usable frequency range: DC – 1 GHz
- Gain: 0 dB, 20 dB
- RF-connectors: BNC-female
Input specification

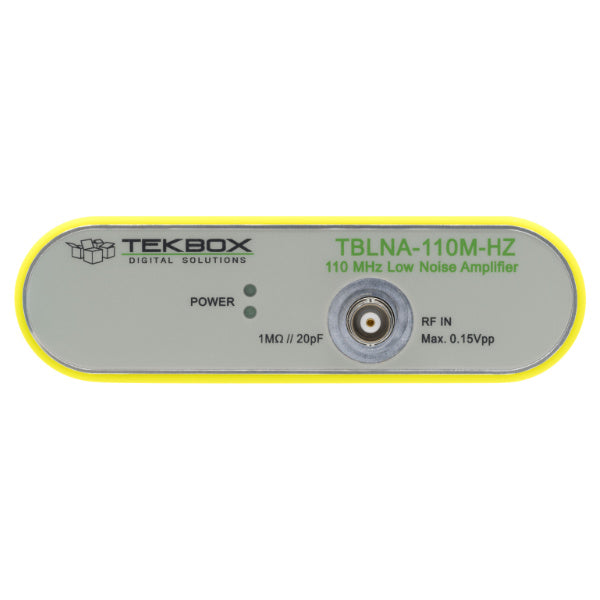

- Input impedance: 1 MΩ // 20 pF
- Input Noise Voltage: >2 MHz: typ. <10 nV/√Hz; for details see chapter 3.3
- Maximum input level for linear output:
- 150 mVpp for output saturation at the 20 dB gain output, 1:1
- 1.5 Vpp for output saturation at the 20 dB gain output, 1:10
- 1.5Vpp for output saturation at the 0 dB gain output, 1:1
- 15Vpp for output saturation at the 0 dB gain output, 1:10
- Maximum ratings: 50Vpp AC
Output specification
- Output impedance: 50 Ω, detailed plots in chapter 3.2
- Output return loss: > 25 dB, detailed plots in chapter 3.2
- P1dBout :
- +8.6 dBm ( 1.7 Vpp ),20 dB gain output
- +8.6 dBm ( ≙ 1.7 Vpp ), 0 dB gain output
- IP3out :
- +19 dBm, 20 dB gain output
- +19 dBm, 0 dB gain output
- DC offset: < 10mV output offset
Supply specification
- Power-connector: Coaxial power socket; 2 mm / 5.5 mm; positive center conductor
- Indicator LEDs: Power ON, Power Good
- Operating voltage: 12 V; external power supply 100 V – 240 V, 50/60 Hz
- Current consumption: 275 mA
- Operating temperature range: -20°C to +50°C
- Dimensions: W 135 mm x H 40 mm x L 110 mm;
- Weight: 350 g
