TBLPA1 - Linear Wideband Power Amplifier
Couldn't load pickup availability
Secure checkout
Friendly support
Hassle-free returns

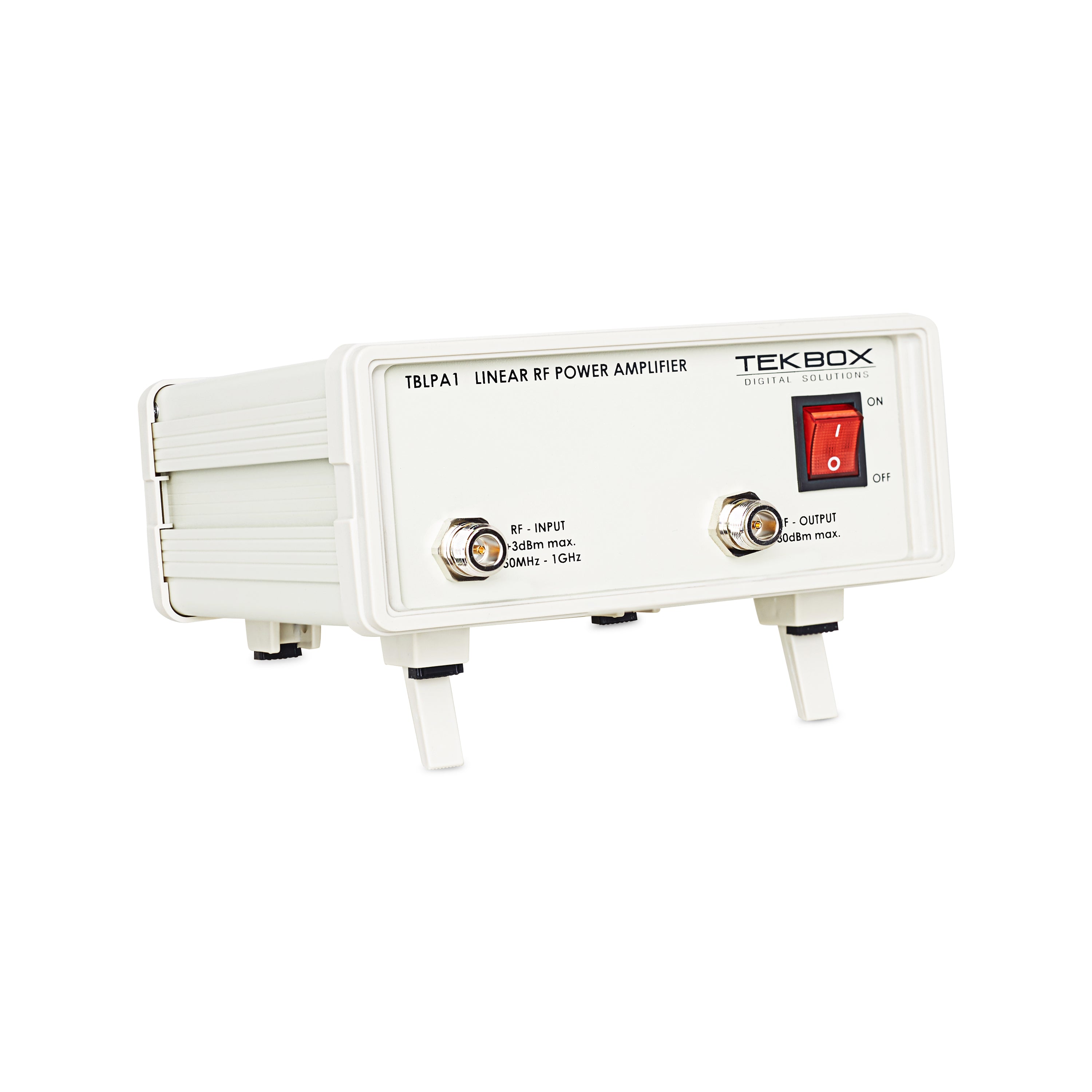

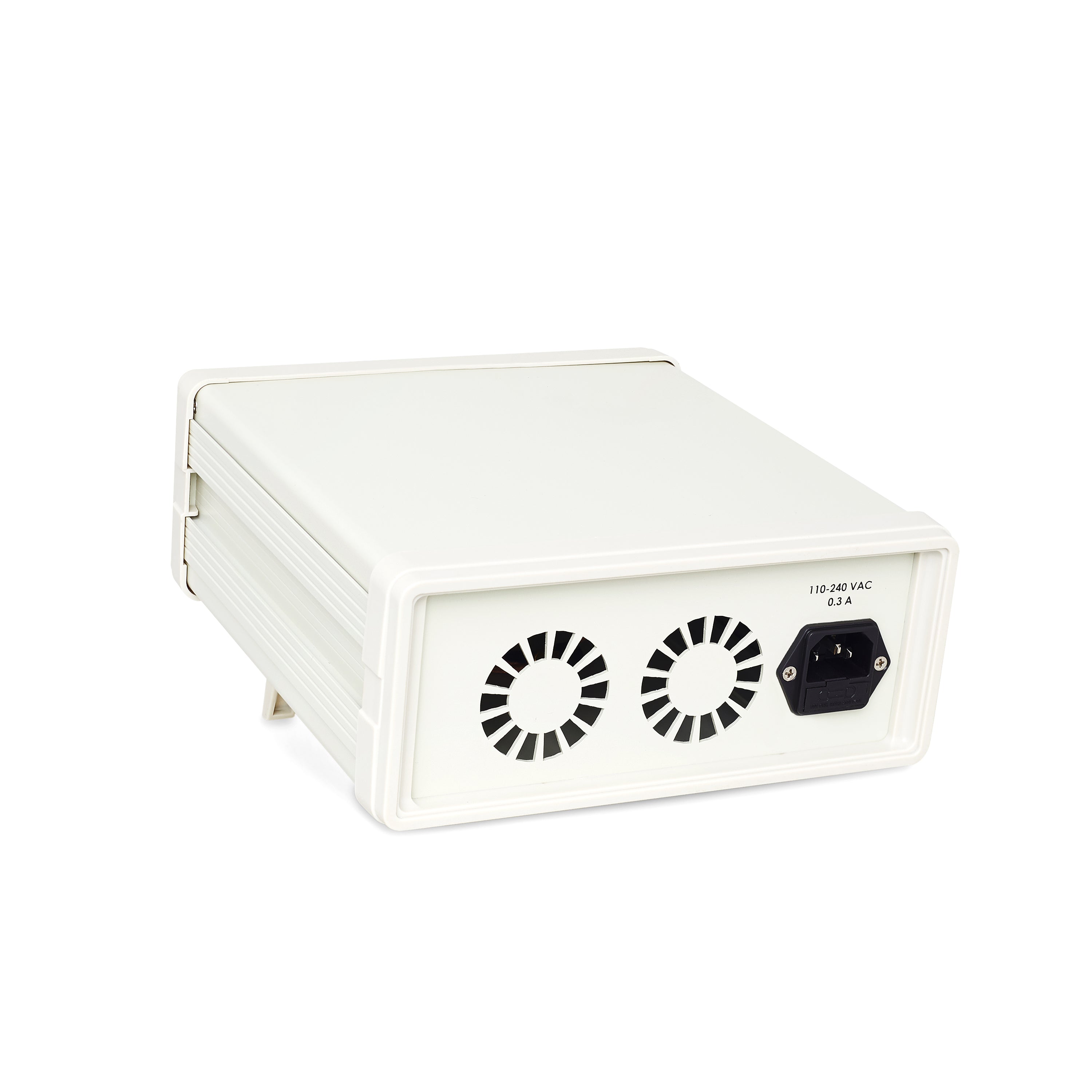

The TBLPA1 linear wideband power amplifier is a general purpose RF amplifier for test and measurement applications. It has an output power capability of up to 1W and can be used in the frequency range from 10 MHz to 1 GHz and with reduced output power capability even beyond.
Specifications
Input / Output: 50 Ohm, N female
Supply Voltage range: 110 V…240 V
Supply power consumption: 18 W
Operating temperature range: -20°C to 60°C
Frequency range: 50 MHz – 1 GHz, (5MHz – 1.3GHz with reduced output power capability)
Gain: 32dB typ., see table 1 for details
1dB output compression point @ 10MHz: +30.2 dBm typ.
1dB output compression point @ 100 MHz: +31.4 dBm typ.
1dB output compression point @ 500 MHz: +31.2 dBm typ.
1dB output compression point @ 1 GHz: +28.2 dBm typ.
2nd harmonic, 50MHz, Pout=30dBm: < – 50 dBc typ
2nd harmonic, 200MHz, Pout=30dBm: < – 45 dBc typ
3rd harmonic, 50MHz, Pout=30dBm: < – 30 dBc typ
3rd harmonic, 200MHz, Pout=30dBm: < – 35 dBc typ
Total harmonic distortion:
0.5% @200MHz, Pout=27dBm typ.
0.7% @200MHz, Pout=28dBm typ.
0.8% @200MHz, Pout=29dBm typ.
1.5% @200MHz, Pout=30dBm typ.
Third order intercept point:
+50dBm, @200MHz, ∆ f = 200kHz typ.
Input return loss:
50 MHz: 14dB typ.
800 MHz: 5dB typ.
Output VSWR:
50 MHz: 1.4:1
800 MHz: 1.4:1
Maximum ratings:
Maximum input power: +3 dBm
The output of the TBLPA1 is quite tolerant to output mismatch, however open or shorted load is not recommended, potentially can cause damage.
Application:
- General-purpose power amplifier
