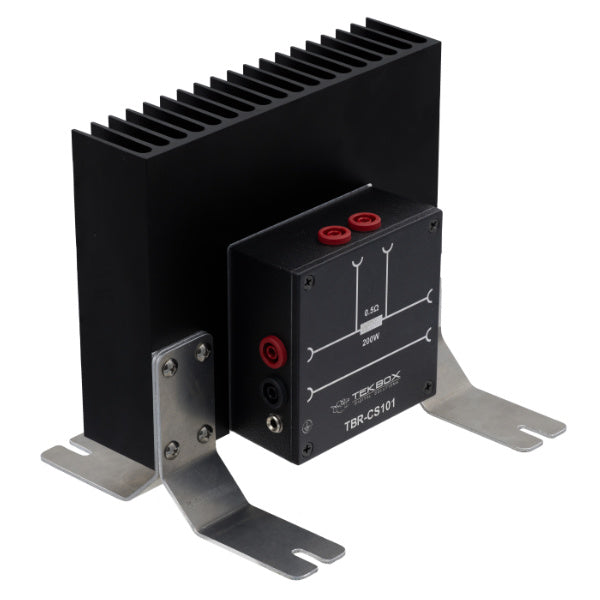

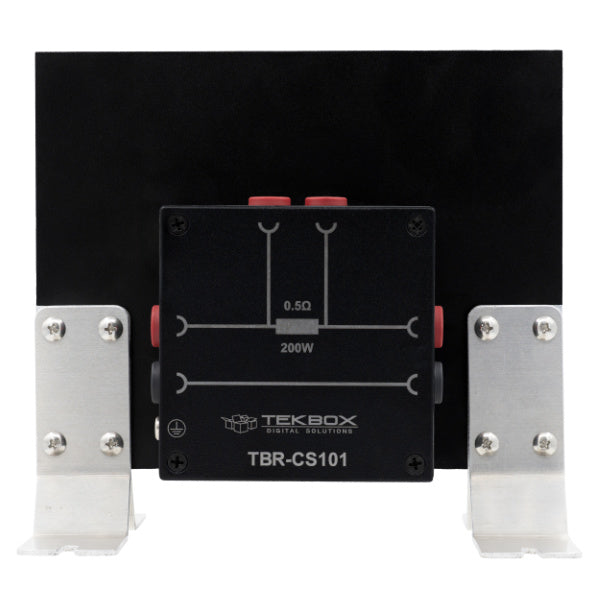

TBR-CS101 0.5 Ohm Measuring Resistor
MIL-STD-461 CS101, conducted susceptibility, power leads, requires a 0.5 Ohm measuring resistor in the test setup. Furthermore, it is required for MIL STD-461 CS109, ISO 11452-10, ISO 7637-2, ISO 16750-2 and various automotive manufacturer standards.
It is also used to measure currents and present a resistive minimum load in setups to generate magnetic fields, where it is connected in between the amplifier output and a Helmholtz coil.
The TBR-CS101 is rated 100W continuous, 200W short time and specified from DC to 300kHz.
SPECIFICATIONS
- Characterized frequency range: 10 Hz to 300 kHz
- Maximum power rating: 100 W / 14 A continuous without forced convection 150 W / 17 A short time without forced convection 200 W / 20 A short time without forced convection
- Connectors: 4 mm safety sockets
- Earth: slotted aluminium brackets; 4 mm socket
- Weight: 1.4 kg
- Outer Dimensions: W 185 mm x H 170 mm x L 160 mm
