TBRFH4 RF Housings

  • $59.00

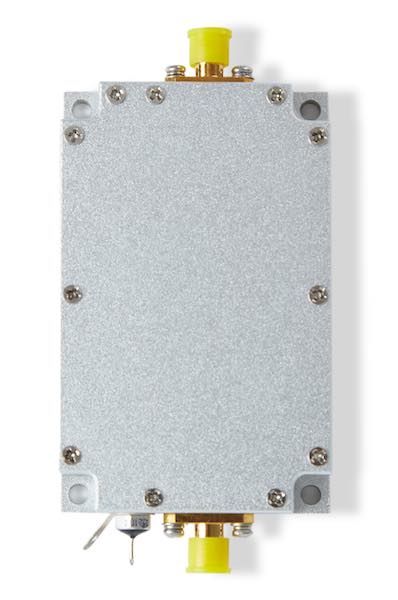

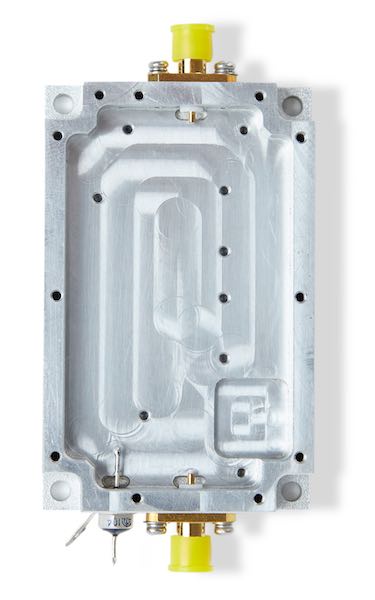

The TBRFH4 housing is ideal for RF building blocks such as amplifiers or similar. The housing is milled from aluminium and equipped with SMA-female connectors and a feed-through capacitor for the power supply line.


  • Outer dimensions [mm]: 48 x 76 x 12
  • Inner dimensions [mm]: 40,2 x 67,7 x 6.5
  • Material: Alu A6061
  • Surface sandblasted
  • RF connectors: SMA-Female
  • detail: Feed through capacitor, 10nF, 50V
  • Weight [g]: 130


TBRFH4 manual
