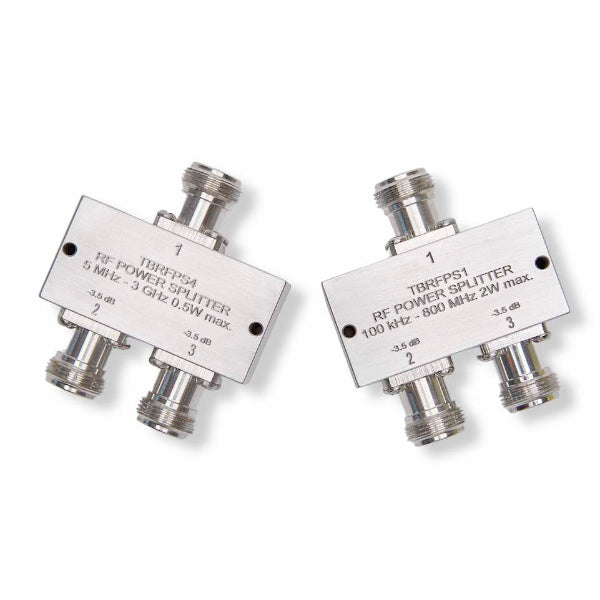

TBRFPSX General Purpose 2 Way Power Splitter/Power Combiner

  • $65.00


SPECIFICATION

TBRFPS1

  • max. power [W]: 2
  • frequency range [MHz]: 0.1 – 800

typical mid-band performance

  • S21 above 3 dB [dB]: -0.5
  • S31 above 3 dB [dB]: -0.6
  • Amplitude unbalance [dB]: 0.1
  • Phase unbalance [°]: 0.1
  • Isolation [dB]: 23
  • SWR Port 1: 1.2
  • SWR Port 2: 1.2
  • SWR Port 3: 1.2

TBRFPS4

  • max. power [W]: 0.5
  • frequency range [MHz]: 5 – 3000

typical mid-band performance

  • S21 above 3 dB [dB]: -0.6
  • S31 above 3 dB [dB]: -0.9
  • Amplitude unbalance [dB]: -0.3
  • Phase unbalance [°]: 0.5
  • Isolation [dB]: 21
  • SWR Port 1: 2.0
  • SWR Port 2: 2.0
  • SWR Port 3: 2.0

DOCUMENTATION

TBRFPSX Manual
