TBSCP1 RF surface current monitoring probes

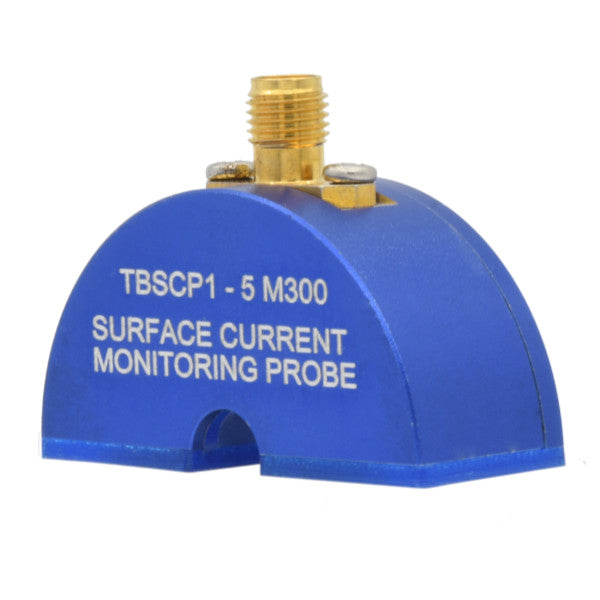

The TBSCP1-5M300 is a RF surface current monitoring probe.
The probe has a very flat response from 5 MHz to 300 MHz and is characterized over the frequency range from 30 kHz to 400 MHz. The TBSCP1-5M300 is for RF current monitoring applications that need to measure RF currents flowing on surfaces such as PCB groundplanes or traces, metal planes or wires.
The footprint of the RF current monitoring probe measures 40 mm x 15 mm. The transfer impedance is -7 dB Ohm with a typical 3dB bandwidth from 5 MHz to 300 MHz.

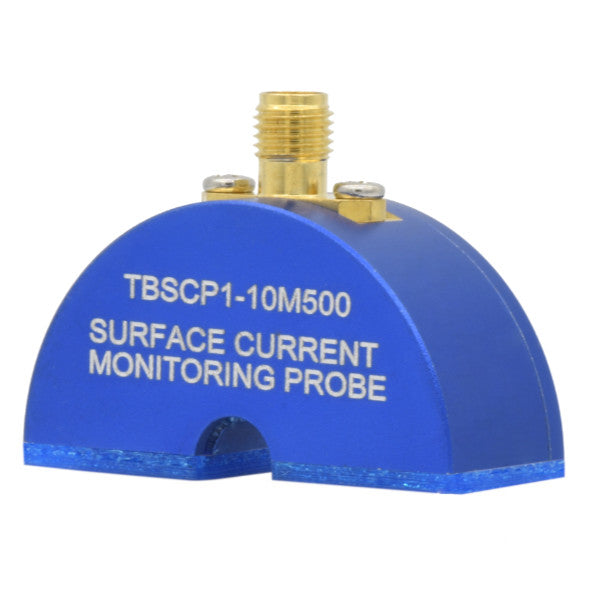

The TBSCP1-10M500 is a RF surface current monitoring probe.
The probe has a very flat response from 10MHz to 500 MHz and is characterized over the frequency range from 9 kHz to 600 MHz. The TBSCP1-10M500 is for RF current monitoring applications that need to measure RF currents flowing on surfaces such as PCB groundplanes or traces, metal planes or wires.
The footprint of the RF current monitoring probe measures 40 mm x 15 mm. The transfer impedance is -5 dB Ohm with a typical 3dB bandwidth from 10 MHz to 500 MHz.

SPECIFICATION

TBSCP1-5M300

• Characterized frequency range: 30 kHz to 400 MHz
• Transfer impedance: -7 dB Ohm with a 3 dB bandwidth from 5 MHz to 300 MHz
• Suppression of orthogonal field: typ. > 15 dB avg. up to 100 MHz
• Footprint: 40 mm x 15 mm
• Height: 30 mm
• Weight: 25 g
• Connector type: SMA female
• Max. primary current (DC - 400 Hz): 150 A
• Max. primary current (RF): 12 A
• Max. core temperature: 125 °C

TBSCP1-10M500

• Characterized frequency range: 30 kHz to 600 MHz
• Transfer impedance: -5 dB Ohm with a 3 dB bandwidth from 10 MHz to 500 MHz
• Suppression of orthogonal field: typ. > 15 dB avg. up to 100 MHz
• Footprint: 40 mm x 15 mm
• Height: 30 mm
• Weight: 25 g
• Connector type: SMA female
• Max. primary current (DC - 400 Hz): 150 A
• Max. primary current (RF): 12 A
• Max. core temperature: 125 °C

DOCUMENTATION

TBSCP1-5M300 manual

TBSCP1-10M500 manual
