TBST86/49/45/2-B - Shielded Tent

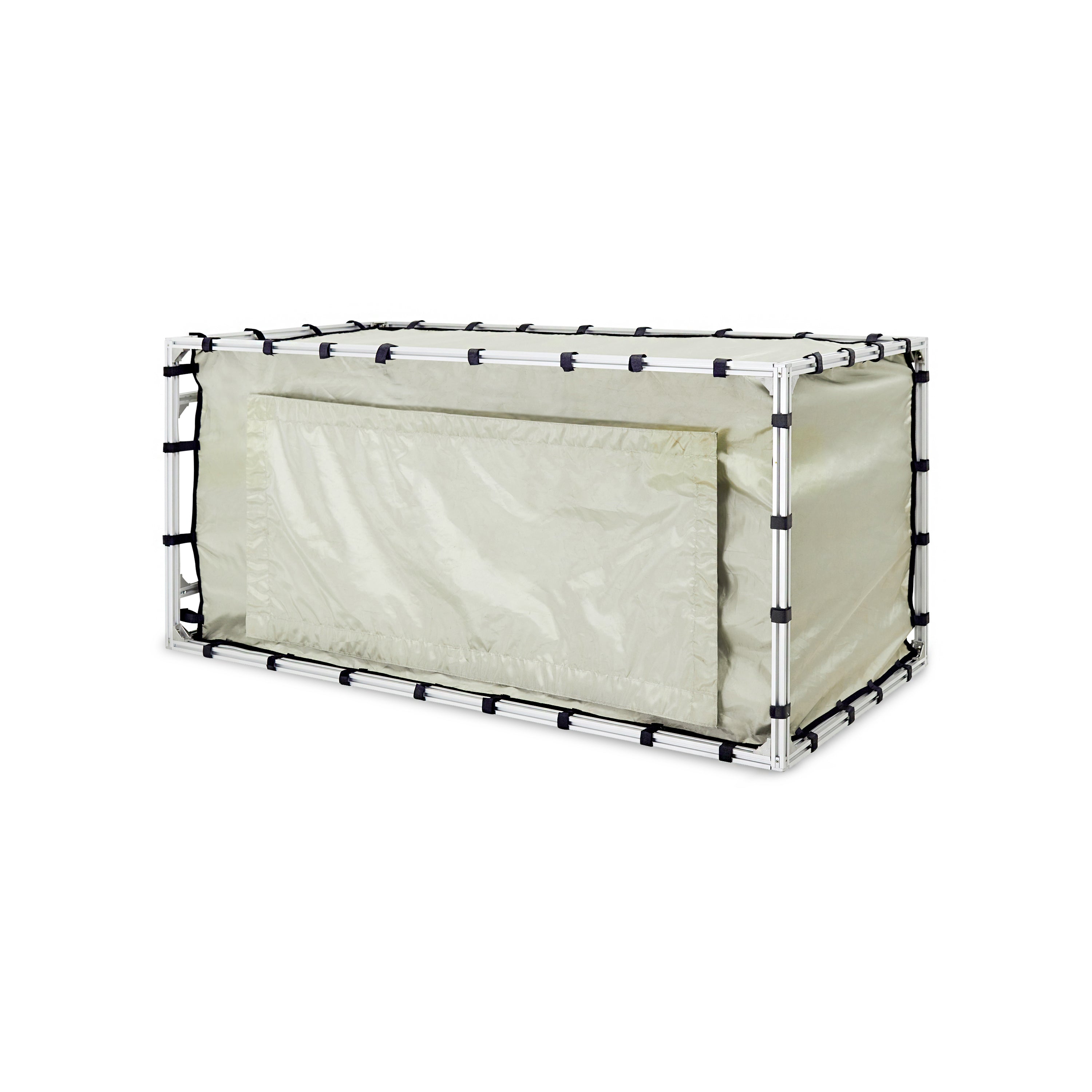

The TBST-86/49/45/2-B is a shielded tent, designed to suppress interference from ambient noise during EMC pre-compliance measurements. With a size of 86 cm x 49 cm x 45 cm, it can accommodate the TBTC0/1/2 and all our LISN.

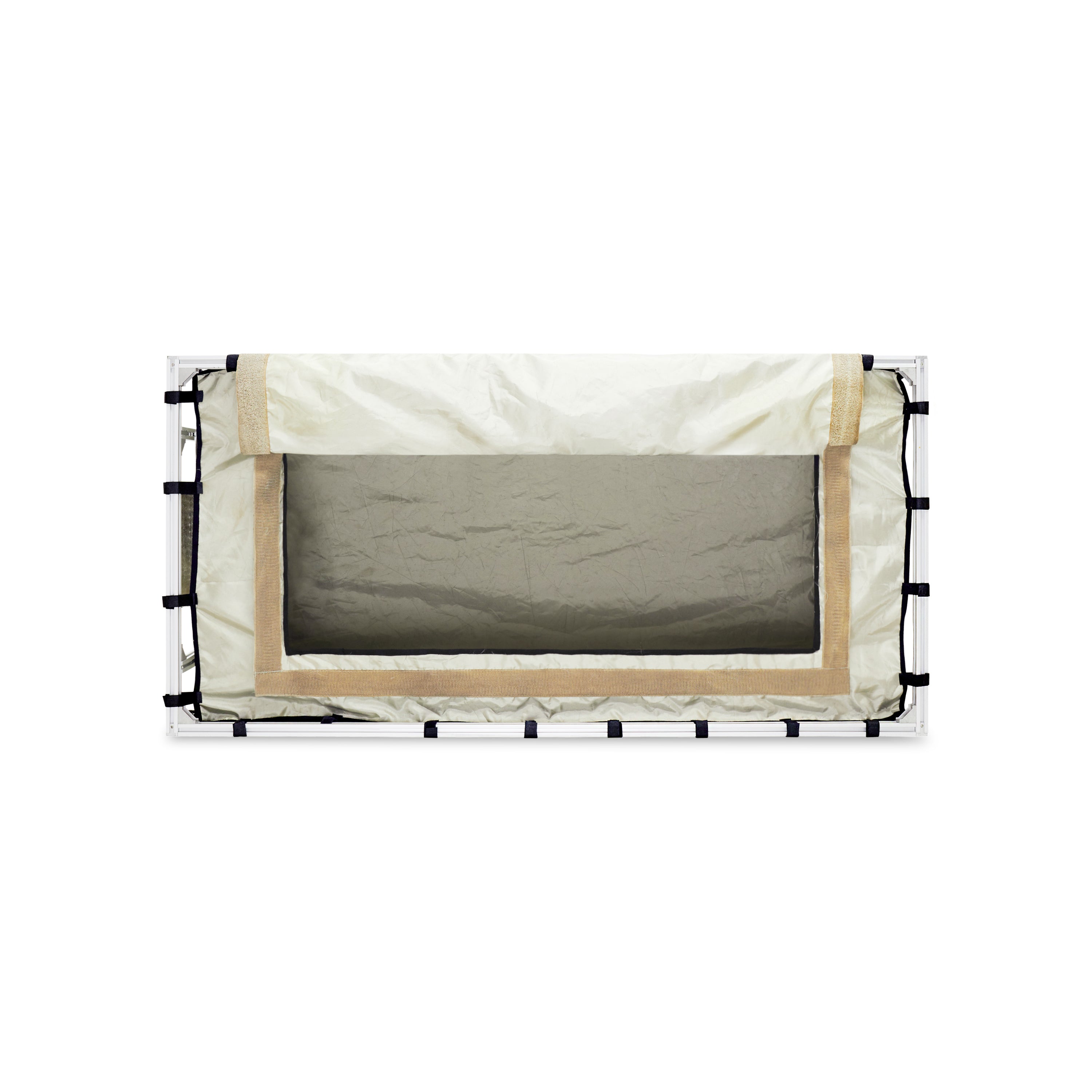

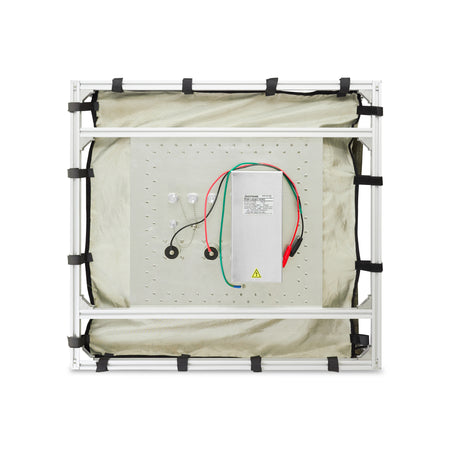

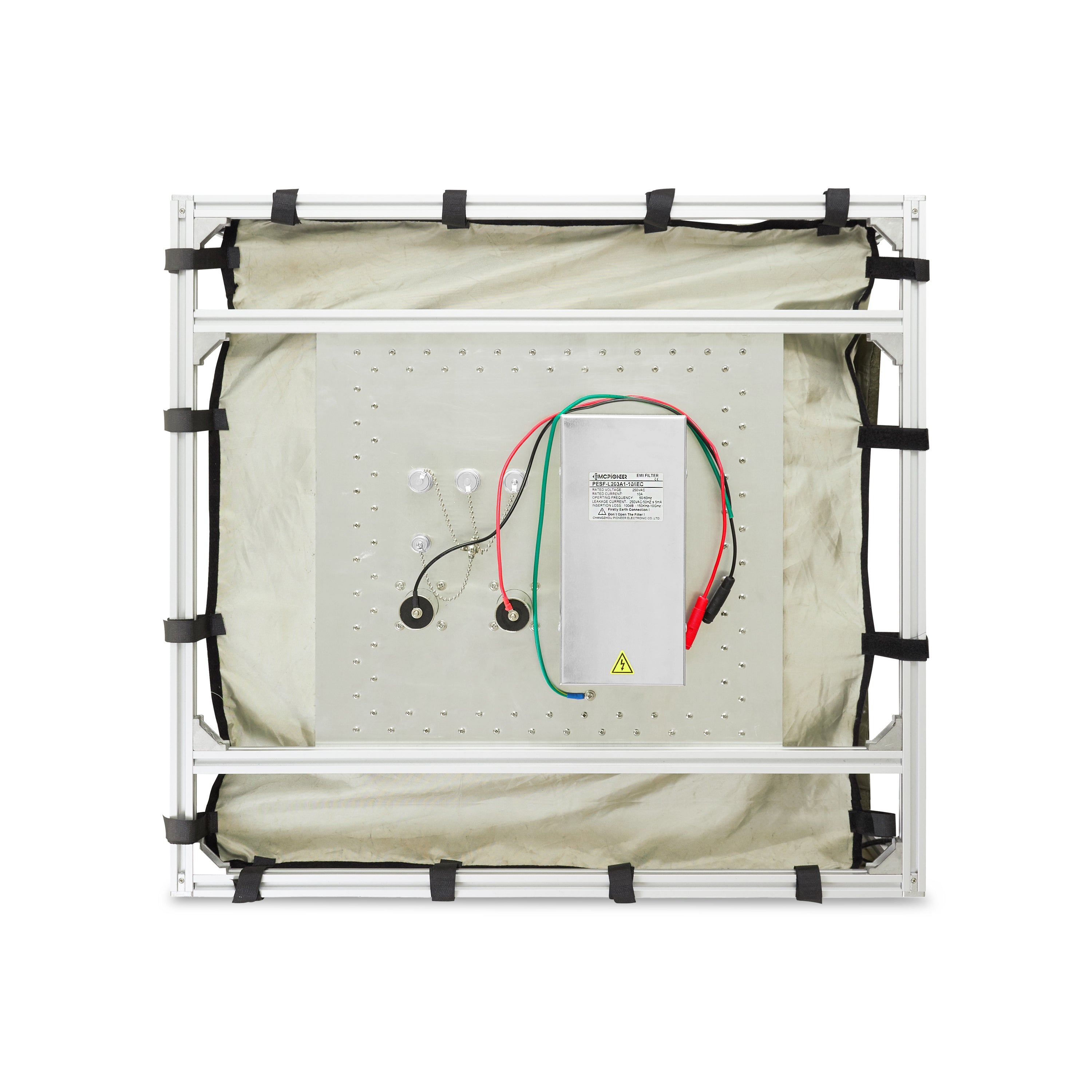

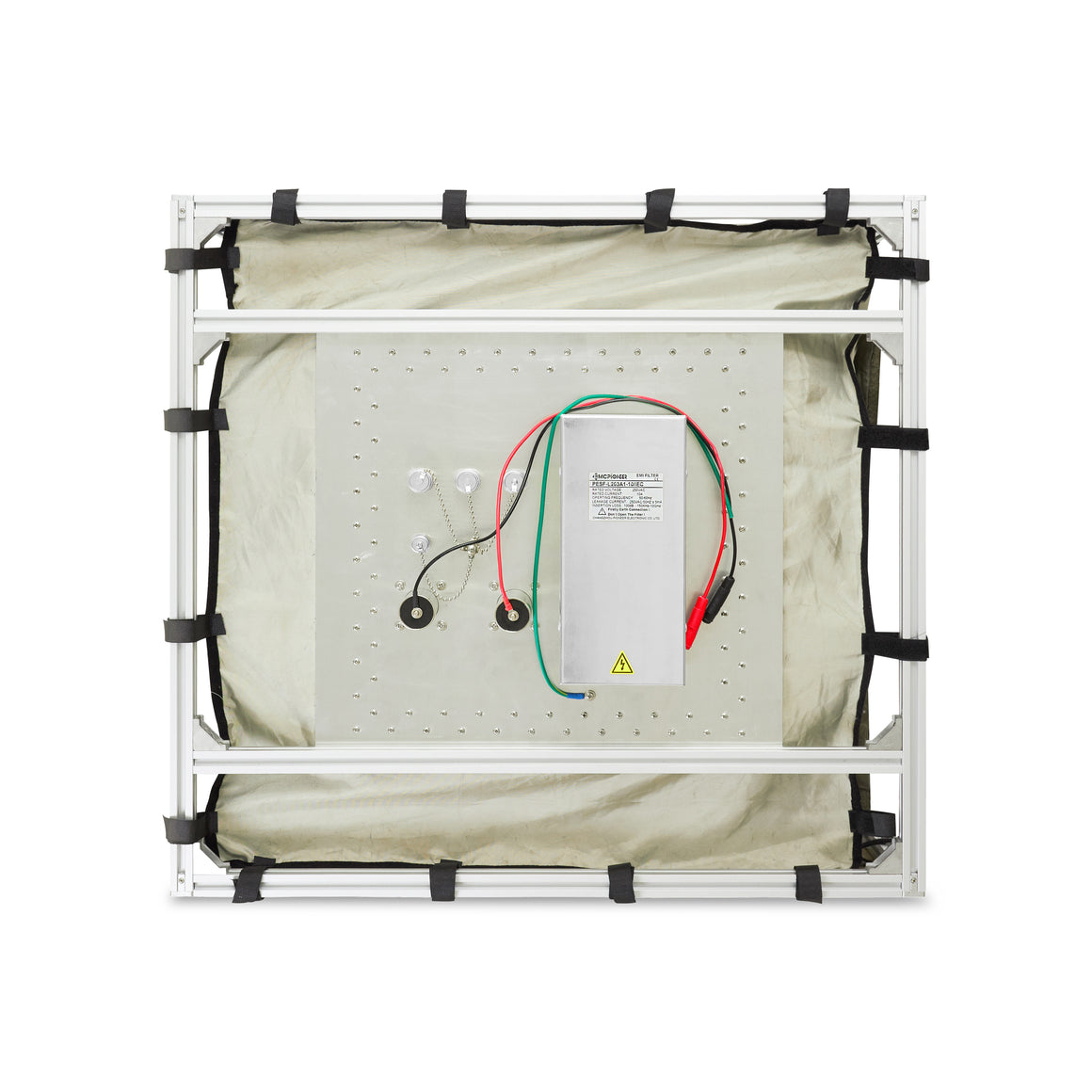

The shielded tent is composed of two layers of conductive fabrics. It is supported by rigid aluminium profiles. The filter panel at the side provides a 240V/10A AC filter, two 240V/10A DC filter and four coaxial feed through adapters with screw caps. The access opening is sealed with conductive Velcro tape.
SPECIFICATIONS
- Outer dimensions: 86 cm x 48 cm x 48 cm
- Opening dimensions: 40 cm x 22 cm
- Frame: 20 mm x 20mm extruded aluminium profiles
- Shielding: 2 layers of conductive fabrics
- Seal: conductive Velcro tape
- Suspension: Velcro stripes
-
Filter panel: 1 x 240V/10A AC filter; IEC socket
2 x 240V/10A DC filter; cables with female Banana couplers
3 x N- female feed through connector with screw caps
1 x BNC-female feed through connector - Attenuation: ~ 50 dB in the range DC to 1.5 GHz
- Weight: 7.5 kg
