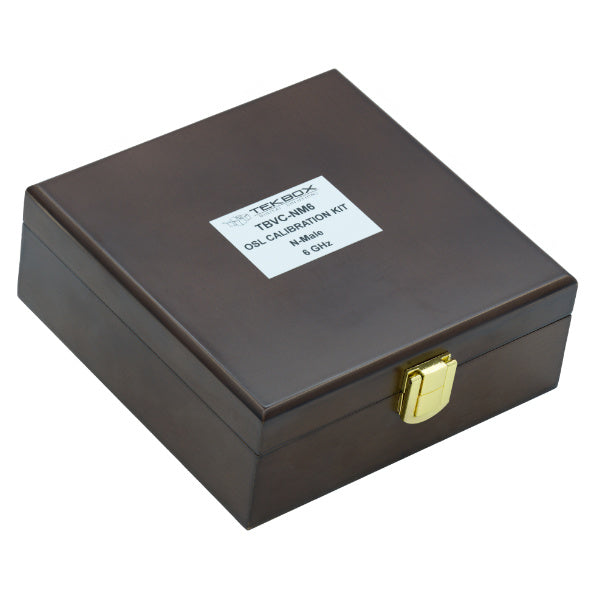

TBVC-NM6 N-Male VNA calibration kit, 6 GHz

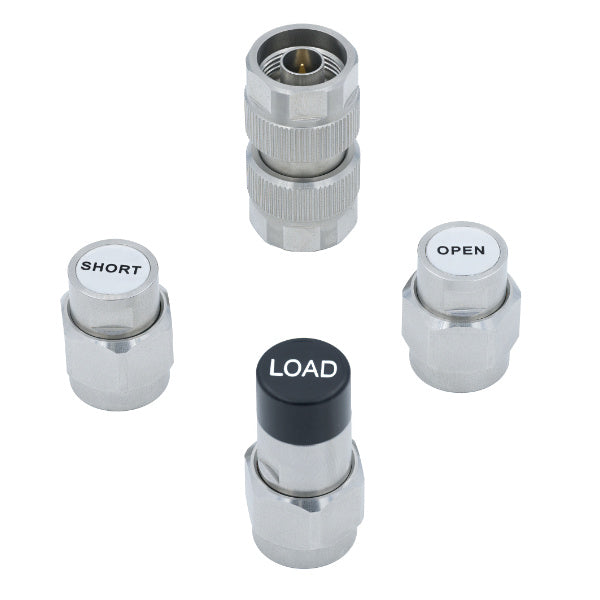

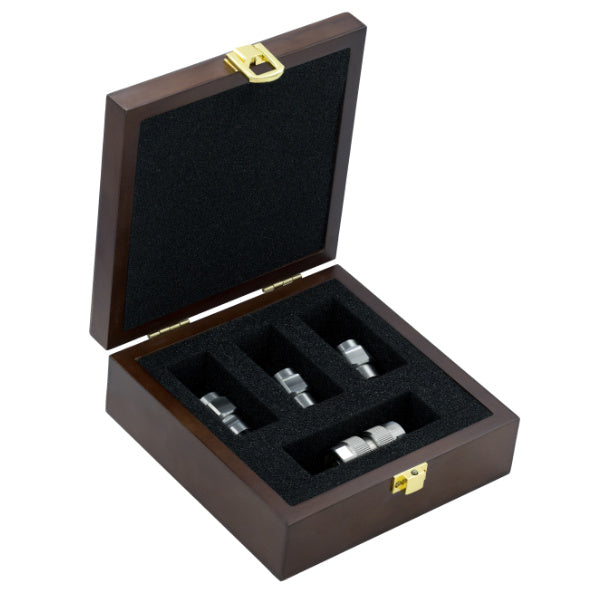

The TBVC-NM6 is a calibration kit for Vector Network Analyzers. It contains an Open, a Short, a Load and a Through. It is used for OSLT calibration in the frequency range DC - 6 GHz.
SPECIFICATIONS
Load:
N-Male
Z = 50 Ω
Return loss > 35 dB
Short:
N- Male
Z = 50 Ω
Delay = 17.847 ps
Loss = 8.56 GΩ/s
L 0 = -4.41 pH
L 1 = -1.1e-22 H/Hz
L 2 = -3.0e-32 H/Hz2
L 3= -4.2e-43 H/Hz3
Through:
N- Male
Z = 50 Ω
Loss = 2.92 GΩ/s
Delay = 138.106 ps
Open:
N- Male
Z = 50 Ω
Delay = 20.554 ps
Loss = 1.9 GΩ/s
C0 = -1.75 fF
C1 = 1.95e-25 fF/Hz
C2 = 2.3e-35 fF/Hz2
C3 = 2.42e-45 fF/Hz3
