SKU: TBCG2 Barcode: 8936120675397
(0)

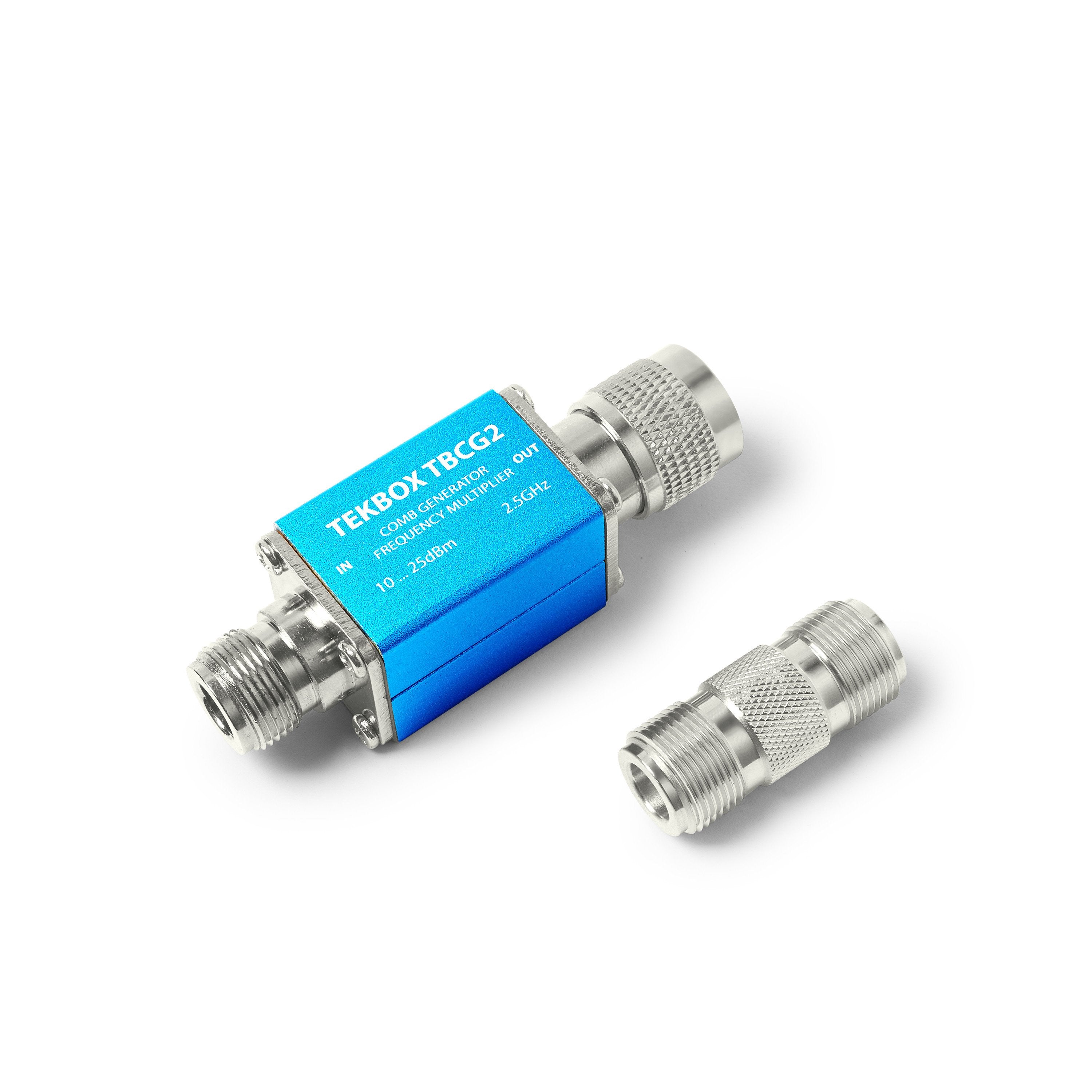

TBCG2 - Comb Generator/Frequency Multiplier

TekBox
In stock
$99.00

Secure checkout

Friendly support

Hassle-free returns

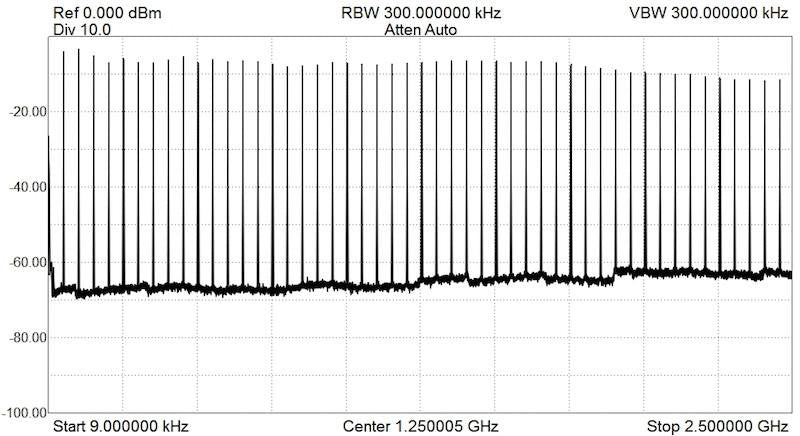

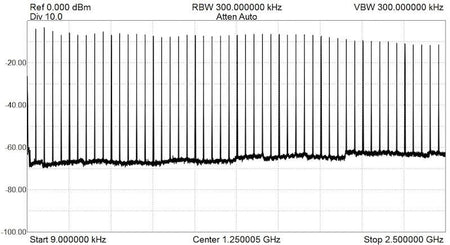

The TBCG2 is a passive, step recovery diode based comb generator / frequency multiplier. It is optimized for moderate drive power and spectrum flatness in the frequency range 1 MHz to 2.5GHz.

The recommended drive power is +10 dBm to +20 dBm

The frequency range for the drive signal is 1 MHz to 350MHz

Specifications

  • Input Power: +10 dBm to +20 dBm; 25 dBm max
  • Input Frequency: 1 MHz to 350 MHz
  • Comb spectrum: 1 MHz - 2.5 HGz
  • Input connector: N female
  • Output connector: N male
  • Dimensions: 81 mm x 26 mm x 26 mm
  • Weight: 96 g

Documentation

TBCG2 User Manual
